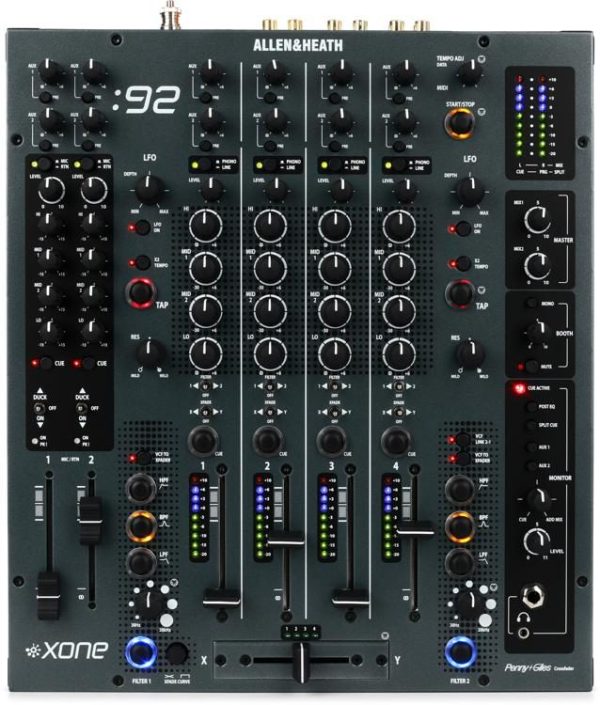

Allen & Heath XONE : 92/220X
$2,620.00
- Description
Description
OVERVIEW
The industry-standard Xone:92 is a versatile six channel analogue mixer, renowned for its expansive, involving sound.
With its solid construction and easy to use interface, the 92 is on the riders of most of the world’s top DJs and is a permanent fixture in the booth at many of the biggest superclubs.
The Xone:92 was one of the first professional DJ mixers to incorporate MIDI for control of DJ software or external devices, and the first to include the innovative dual VCF filters.
With its two stereo FX sends, twin Mic/returns, and one of the best EQ sections around, this mixer is a DJ’s dream tool.
FEATURE SUMMARY
- 6 dual stereo channels – 4 phono/line, 2 mono/mic or stereo return
- 2 independent stereo mix outputs
- 2 aux sends for output to external FX units
- VCF system – 2 independent stereo filters with frequency and resonance controls
- 2 independent LFO’s for filter manipulation
- 4-band EQ – total kill on HF and LF, wide Q for cut, narrow Q for boost
- Booth output – dedicated output on TRS jack
- MIDI values can be output from 6 controls (e.g. crossfader, LFO)
- P&G easy change professional VCA crossfader
- Illuminated lightpipes showing status of performance controls
- Intelligent cue for pre or post EQ monitoring
- Monitor section includes post EQ switch, split cue and mix to cue balance
- 2 headphone outputs (1/4” and 3.5mm)
- Ducking control on mono/mic channel
Specifications:
| Channels | 4 + 2 mic/stereo return |
|---|---|
| Analog Inputs | 4 x stereo RCA phono, 4 x stereo RCA line, 2 x XLR mic, 4 x 1/4″ return |
| Analog Outputs | 2 x XLR, 4 x TRS, 1 x stereo RCA |
| Headphones | 2 x 1/4″ |
| MIDI I/O | Out |
| Other I/O | 2 x TRS sends with 4 x TRS returns on mic 1 and mic 2 channels |
| Faders | 60mm VCA channel faders |
| Crossfader | Replaceable active Penny & Giles VCA crossfader with adjustable contour |
| EQs | 4-band with infinite kills |
| Effects | X-FX engine plus 2 x LFO |
| MIDI Control | Crossfader, LFO (MIDI clock), dedicated data control and start/stop button |
| Rackmountable | Yes |
| Width | 12.6″ |
| Depth | 14″ |
| Height | 3.5″ |
| Weight | 6 kgs |
