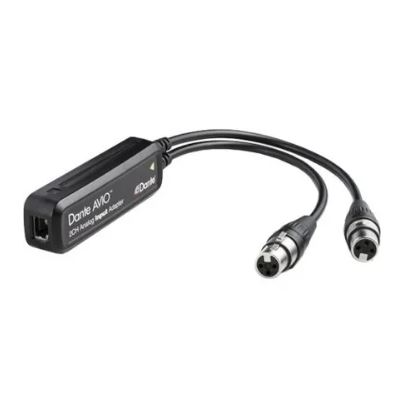

Audinate ADP-DAI-AU-2×0 Dante AVIO Analog Adapter Input 2 Channel

Manufacturer Part# ADP-DAI-AU-2X0

Dante AVIO Analog Inputs let you use analog audio line-level source gear you already own to feed any Dante connected system. Don’t abandon trusted mixing consoles, wireless mics and other analog sources – adapt them to the world of audio networking with Dante AVIO. Supports two channels of analog audio input.
• Connect legacy mixers and consoles to a Dante network
• Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
• Connect stage DI boxes and keyboard instruments directly to a Dante network

The AVIO supports Dante Audio over IP and AES67 RTP transport formats, and is compatible with Dante Domain Manager (DDM).

802.3af-compliant PoE injector device required for use.

• Two channels balanced line level analog input
• Adjustable signal levels: +24dBu / +4dBu / 0dBu/ 0dBV /-10dBV (through Dante Controller)
• Frequency Response: 20Hz to 20kHz (-/+0.5dB)
• Impedance: 20k Ohm balanced, 10k Ohm unbalanced
• Dynamic Range > 100dB
• Signal to Noise Ratio: > 100dB
• Total Harmonic Distortion: < 0.01% at +4dBu
• Sample Rates: 44.1, 48, 96 kHz
• Bit Depth: 24
• Powered through Class 1 802.3af PoE Switch or injector
