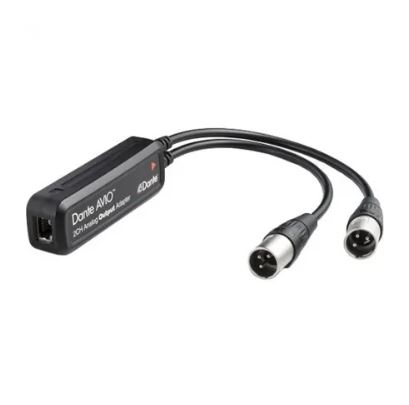

Audinate ADP-DAO-AU-0x2 Dante AVIO Analog Adapter Output 2 Channel

Manufacturer Part# ADP-DAO-AU-0X2

Dante AVIO Analog Outputs let you drive analog line-level products you already own from any Dante-connected
system. Bring your amplifiers, powered speakers and more to the world of audio networking with Dante AVIO.
Supports two channel of analog audio output.
• Send audio to analog power amplifiers and powered speakers over a Dante audio network
• Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
• Create easy drop-points for connecting overflow areas to a Dante network

The AVIO supports Dante Audio over IP and AES67 RTP transport formats, and is compatible with Dante Domain Manager (DDM).

802.3af-compliant PoE injector device required for use.

• Two channels of balanced line level analog output
• Adjustable signal level: +18dBu / +4dBu / 0dBu/ 0dBV /-10dBV (through Dante Controller)
• Frequency Response: 20Hz to 20kHz (-/+0.5dB)
• Impedance: 150 Ohm balanced, 75 Ohm unbalanced
• Dynamic Range > 100dB
• Signal to Noise Ratio: > 100dB
• Total Harmonic Distortion: < 0.01% at +4dBu
• Sample Rates: 44.1, 48, 96 kHz
• Bit Depth: 24
• Powered through Class 1 802.3af PoE Switch or injector
