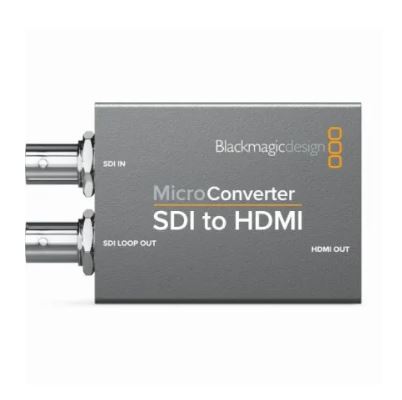

Blackmagic Design Micro Converter SDI to HDMI with Power Supply

Description



Specifications:

Connections
SDI Video Inputs
1 x SD, HD or 3G-SDI.

SDI Video Outputs
1 x SDI loop out.

HDMI Outputs
HDMI Type A out.

Multi Rate Support
Auto detection of SD or HD.

Updates, Configurations and Power
Micro USB.

Micro Converter SDI to HDMI wPSU
Standards
SDI Video Standards
525i59.94 NTSC, 625i50 PAL

HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M

SDI Video Rates
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI.

SDI Color Precision
4:2:2

SDI Color Space
YUV

SDI Auto Switching
Automatically detects SD, HD and 3G-SDI.

HDMI Video Standards
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HDMI Color Precision
4:2:2

HDMI Color Space
YUV

Software
Software Control
Mac™ and Windows™ software upgrade via micro USB.

Internal Software Upgrade
Via micro USB.

Operating Systems
Mac icon
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.

Windows Icon
Windows 8.1 and 10.

Settings Control
Via software utility.

Power Requirements
+5V universal power supply included with international socket adapters for all countries.

Power Consumption
1.60 Watts

Operational Voltage Range
4.4V to 5.25V DC

Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)

Storage temperature
-20° to 60° C (-4° to 140° F)

Relative Humidity
0% to 90% non-condensing

Physical Specifications
Micro Converter SDI to HDMI wPSU
What’s Included
Micro Converter SDI to HDMI wPSU

+5V universal power supply with international socket adapters
