Bose AMPLIFIER, IZA 2120-LOW Z,230V EU MASTER 2 x 120 Watts

$1,116.54

For background/foreground music and paging applications, Bose Professional FreeSpace IZA 2120-LZ integrated zone amplifier elevates the audio experience when using FreeSpace loudspeakers. Optimized for commercial applications, FreeSpace IZA amplifiers feature selectable Loudspeaker EQ to enrich audio quality, Opti-Voice paging for clear speech intelligibility while providing seamless transitions and Dynamic EQ that ensures full and balanced music at any volume level.

Categories: ALL PRODUCTS, Powered Amplifier

Brands: BOSE

Description

Description

Opti-Voice paging equalizes the vocal frequency range for clear speech intelligibility while providing seamless transitions
Dynamic EQ ensures full and balanced music at any volume level
Independent Loudspeaker EQ per output enriches audio quality and simplifies connection to Bose Professional loudspeakers: FreeSpace 3 systems, FS3 subwoofer, FS2, FS4 and DesignMax DM2
Remote option for volume/source selection eliminates the need for bulky, inefficient, and sound-altering in-line volume controls
Dual remotes support optional volume/source selection for independent, or combined, zone control which eliminates the need for bulky, inefficient, and sound-altering 70/100V in-line volume controls
Reliable 2 × 120 W Class-D amplification optimized for low-impedance applications
Intuitive feature setup enables the amplifier to be configured without a PC for output, remote, paging, auxiliary input/output and automatic standby options
Auto-Standby feature allows the amplifier to consume less power when not in use
Simplified front panel interface provides end users with tone, source selection and master volume controls as well as a connection to mobile sources via a 3.5 mm connector
Remote muting allows the amplifier to be muted via a centralized control system

Applications

Designed for a wide range of applications, including:

Retail stores
Restaurants and bars
Hospitality venues
Conference centers
Schools
Auxiliary zones

TECHNICAL SPECIFICATION

AMPLIFICATION

Channel Separation (Crosstalk)
≤ -58 dBu below rated power, 1 kHz

Dynamic Range
88 dB

Frequency Response
20 Hz – 20 kHz (+0/-3 dB) at 1 W, 1 kHz reference

Number of Channels
2

Power Class
Class D

Rated Power, Symmetrical
120 W per channel at 4 Ω / 60 W per channel at 8 Ω

THD+N
≤ 0.5% at rated power

AUDIO INPUTS, ANALOG

Adjustment Range
0 dB to -30 dB, line / 0 dB to +50 dB, page / fixed, auxiliary

Channels
2 unbalanced, line + 2 balanced, line + 1 balanced, mic/line (page) + 1 unbalanced, line (auxiliary)

Connectors
(2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock, (1) 1/8-in (3.5 mm) TRS

Input Impedance
20 kΩ, line / 2 kΩ, page / 20 kΩ, auxiliary

Input Range
-8 dBu to +22 dBu, line / -58 dBu to +12 dBu, page / -60 dBu to -1 dBu, auxiliary

Maximum Input Level
22 dBu, line / 12 dBu, page / -1 dBu, auxiliary

Nominal Input Level
4 dBu, line / -38 dBu, page / -8 dBu, auxiliary

Sensitivity
-8 dBu, line / -3 dBu, auxiliary / N/A, page

AUDIO OUTPUTS, ANALOG

Channels
2

Connectors
(2) 2-pin inverted Euroblock, (1) RCA stereo pair

Output Impedance
4 Ω / 150 Ω (auxiliary)

ELECTRICAL

Current Draw, Inrush
6.6 A at 120 VAC, 60 Hz / 12.6 A at 230 VAC, 50 Hz

Mains Connector
IEC C14 inlet

Mains Voltage
100–240 VAC (±10%), 50/60 Hz

Protections
High temperature, output short circuit, excessively low/high AC line voltage

Power Consumption
24 W standby, 300 W maximum

INDICATORS AND CONTROLS

Controls, Front Panel
(1) power switch, (1) input selection switch, (2) treble knobs, (2) bass knobs, (1) master level knob

Controls, Rear Panel
Amplifier Mode DIP switches, Loudspeaker EQ preset selector, Input Gain (A/B/Page), Output trims, Remote

LED Status Indicators
(1) power LED, (1) input signal/clip LED, (1) output signal/clip LED

INTEGRATED DSP

A/D and D/A Conversion
48 kHz / 24-bit

Audio Latency
10.4 ms (analog input to analog output)

Presets
Flat, Bose Professional loudspeaker presets (FreeSpace FS2C/FS2P/FS2SE/FS4CE/FS4SE & DesignMax DM2C-LP/DM2S/DM3C/DM3SE)

Processing Functions
Loudspeaker EQ, Opti-Voice EQ (paging), Dynamic EQ (low-end compensation)

PHYSICAL

Cooling System
Single fan, continuous left-to-right air flow

Net Weight
9.0 lb (4.1 kg)

Product Dimensions (H×W×D)
1.7 in × 19.0 in × 12.8 in (44 mm × 483 mm × 324 mm)

Rack Spaces
1 RU

MECHANICAL DIAGRAMS

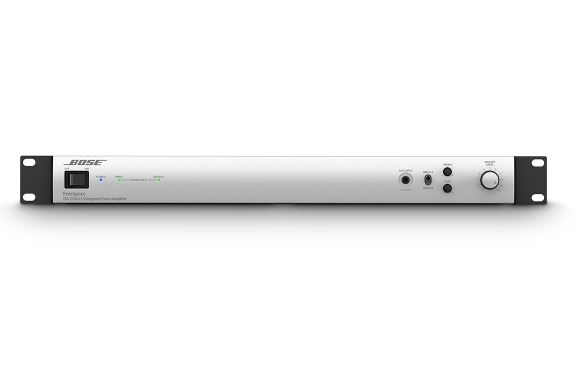

Front View

Back View

Side View

PRODUCT CODES

719782-1440
IZA 2120-LZ, 120V US

719782-2440
IZA 2120-LZ, 230V EU

719782-3440
IZA 2120-LZ 100V JP

719782-4440
IZA 2120-LZ 230V UK

719782-5440
IZA 2120-LZ 240V AU

WARRANTY PERIOD

5 years

INCLUDED IN PACKAGING

(1) AC power cord
(1) FreeSpace IZA 2120-LZ amplifier
(1) owner’s guide
(2) 4-pin Euroblock connectors
(2) 5-pin Euroblock connectors
(3) 2-pin Euroblock connectors
(4) feet with locking pins
