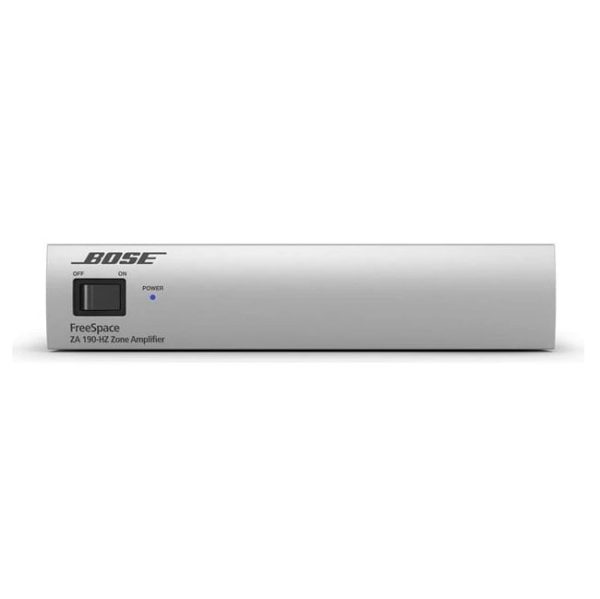

Bose AMPLIFIER, ZA 190-HIGH Z,230V EU SLAVE 1 x 90 Watts

Description

The Bose® FreeSpace® ZA 250-LZ / ZA 190-HZ zone
amplifier provides basic amplification and sound system
expansion for use with front-end signal processing devices.
Expansion is simplified when this amplifier is used with
a FreeSpace IZA integrated zone amplifier, where one
cable connection allows the amplifiers to function together
as one system—sharing music and paging sources, as
well as master volume control. You can also use the
FreeSpace ZA amplifier with other products, such as
the Bose FreeSpace 4400 business music system and
ControlSpace® engineered sound processors, to provide
amplification for additional zones.

Key Features

• Premium sound quality from a reliable, high quality Class-D
amplifier designed to expand sound systems for loudspeaker
installations
• Expandable amplification allows for easy system expansion
when coupled with a FreeSpace IZA 250-LZ or IZA 190-HZ
integrated zone amplifier. The two amplifiers will function
together as one system
• Compact, lightweight design enables the FreeSpace zone
amplifier to be placed out of the way—on a table, desk,
counter, shelf or in an equipment rack using the optional Rack
Mount Kit accessory
• Two models available, 4/8 Ω or 70/100 V output, allow for
better fit options for specific installations

Applications

Designed for a wide range of applications, including:
• Retail stores
• Restaurants and bars
• Hospitality venues
• Conference centers
• Schools
• Auxiliary zones

Technical Specifications

Power Rating
Amplifier Power
FreeSpace® ZA 250-LZ zone amplifier FreeSpace® ZA 190-HZ zone amplifier
2 x 50 W @ 4 Ω, 2 x 25 W @ 8 Ω 1 x 90 W @ 70/100 V
Audio Performance Specifications
Frequency Response
FreeSpace® ZA 250-LZ zone amplifier FreeSpace® ZA 190-HZ zone amplifier
20 Hz – 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz) 60 Hz – 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz)
THD+N ≤0.3 % (at full rated power) ≤1 % (at full rated power)
Channel Separation (Crosstalk) ≤-60 dBV (below rated power, 1 kHz) ≤-60 dBV (below rated power, 1 kHz)
Dynamic Range 88 dB 88 dB
Audio Inputs
Input Channels
Line Inputs
1 Unbalanced
Connectors, Input Stereo RCA
Input Range-10 dBV – +10 dBV
Input Impedance 20 kΩ
Maximum Input Level +10 dBV
Nominal Input Level 0 dBV
Audio Outputs
Outputs
FreeSpace® ZA 250-LZ zone amplifier FreeSpace® ZA 190-HZ zone amplifier
2 1
Connectors, Output 2-terminal barrier strip 3-pin inverted Euroblock
Nominal Output Level 2 x 50 W @ 4Ω (min); 2 x 25 W @ 8Ω 1 x 90 W @ 70/100 V
Indicators and Controls
LED Status Indicators Power – blue
Controls, Front Panel Power On/Off
Controls, Rear Panel Mono/Stereo amplifier mode switch (ZA 250-LZ only), Output trim
Electrical Specifications
Mains Voltage 100 V AC – 240 V AC (+/- 10%, 50/60 Hz)
AC Power Consumption 15 W (Idle), 200 W (Max)
Mains Connector Standard IEC (C14)
Maximum Inrush Current 13.9 Amps (230 V / 50 Hz), 7.6 Amps (120 V / 60 Hz)
Overload Protection High temperature, short
Physical
Rack Space Units 1 RU high, half rack wide
Dimensions 1.8″ H x 8.4″ W x 11.9″ D (45 mm x 214 mm x 302 mm)
Shipping Weight
FreeSpace® ZA 250-LZ zone amplifier FreeSpace® ZA 190-HZ zone amplifier
6.4 lb (2.9 kg) 8.6 lb (3.9 kg)
Net Weight 4.4 lb (2.0 kg) 6.7 lb (3.0 kg)
Cooling System Natural convection
