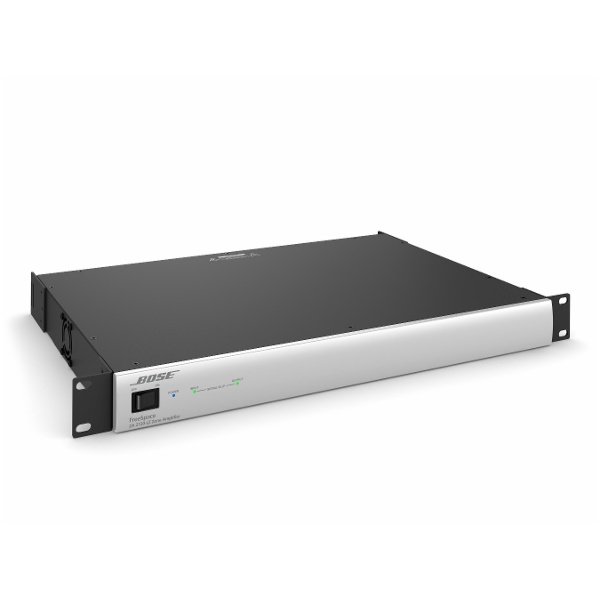

Bose AMPLIFIER, ZA 2120-LOW Z,230V EU SLAVE 2 x 120 Watts

Description

Key Features

• Reliable 2 x 120 W Class-D amplification optimized for
low-impedance applications.
• Remote option for volume control eliminates the need for bulky,
inefficient, and sound-altering in-line volume controls.
• Expansion-ready connectivity with FreeSpace® IZA amplifiers when
additional sources and loudspeaker processing is required.
• Intuitive feature setup enables the amplifier to be configured without
a PC for output and automatic standby options.
• Auto-Standby feature allows the amplifier to consume less power
when not in use.
• Remote muting allows the amplifier to be muted via a centralized
control system.

Applications

Designed for a wide range of applications, including:
• Retail stores
• Restaurants and bars
• Hospitality venues
• Conference centers
• Schools
• Auxiliary zones

Technical Specifications

Power Rating
Amplifier Power 2 x 120 W @ 4 Ω, 2 x 60 W @ 8 Ω
Audio Performance
Frequency Response 20 Hz – 20 kHz (+0/–3 dB, @ 1 W reference 1 kHz)
THD+N ≤ 0.5 % (at rated power)
Channel Separation (Crosstalk) ≤ –60 dBV (below rated power, 1 kHz)
Dynamic Range 88 dB
Audio Inputs
Input Channels 1 unbalanced, 1 balanced
Connectors Stereo RCA, 5-pin Euroblock
Input Range–10 dBV to +10 dBV
Input Impedance 20 kΩ
Maximum Input Level +10 dBV
Nominal Input Level 0 dBV
Audio Outputs
Outputs 2
Connectors 2-pin touch-proof inverted Euroblock
Nominal Output Level 2 x 120 W @ 4 Ω, 2 x 60 W @ 8 Ω
Indicators and Controls
Power LED Solid blue indicates power is on, blinking blue indicates standby mode
Input Signal Clip LED Green indicates input signal is within –39 dBV to 9 dBV, red indicates signal is over 9 dBV
Output Signal Clip LED Green indicates output signal is within –46 dBFS to –2 dBFS, red indicates signal is over –2 dBFS, approximately 80 W/channel
Controls, Front Panel Power On/Off
Controls, Rear Panel Auto Standby: On/Off switch, Output: Stereo/Mono switch, Mute, Output trims, Remote
Electrical
Mains Voltage 100 VAC – 240 VAC (±10%, 50/60 Hz)
AC Power Consumption 21 W (Standby), 350 W (Max)
Mains Connector Standard IEC (C14)
Maximum Inrush Current 5.0 Amps (230 VAC / 50 Hz), 2.7 Amps (120 VAC / 60 Hz)
Overload Protection High temperature, output short, excessively low or high AC line voltage
Physical
Dimensions 1.7″ H x 19.0″ W x 12.8″ D (44 mm H x 483 mm W x 324 mm D)
Shipping Weight 11.5 lb (5.2 kg)
Net Weight 8.5 lb (3.9 kg)
Cooling System Single fan, continuous left-to-right air flow
General
Inputs (Control) Remote input for Volume Control (PC041966), Mute input control via a normally open contact closure
