Name: Bose CONTROLSPACE® CC-16 ZONE CONTROLLER RoHS
SKU: 14919
Price: 404.29 SGD
Availability: InStock

Bose CONTROLSPACE® CC-16 ZONE CONTROLLER RoHS

$404.29

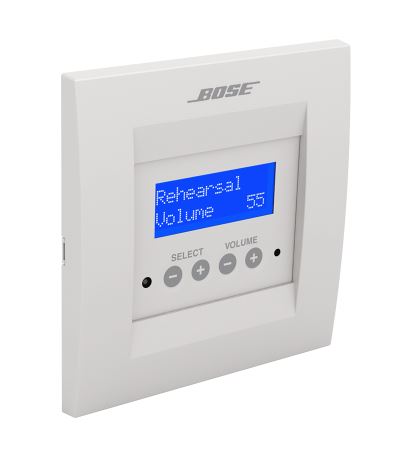

The Bose Professional ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting “scenes” or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.

Categories: ACCESSORIES, ALL PRODUCTS

Brands: BOSE

Description

Description

Elegant styling with intuitive controls for end user operation
122 × 32 pixel backlit blue LCD
Sealed volume +/- and select +/- pushbuttons
Simplified drag-and-drop setup using ControlSpace Designer
DIP switch addressing on back of unit
Programmable control of system elements (switching of audio sources, system configurations)
Supports programming of easy-to-select scenes—allowing multiple room usage scenarios to be recalled from the CC-16 by end users
Customizable on-screen wording provides easier system operation
Programmable software lock-out
Fits into a standard 2-gang electrical wall box

TECHNICAL SPECIFICATION

COMPLIANCE

EMC
ICES-003 Class B, EN55103-1, EN55103-2, FCC Part 15 Class B

ELECTRICAL

Connectors
(1) Euroblock, 6 pins

Cable Requirements
Cat 5 (24–18 AWG), unshielded twisted-pair (UTP)

Maximum Cable Length
2000 ft (609 m)

Maximum Controller Quantity
15 per ControlSpace ESP processor

Power Range
8–18 VDC, 100 mA

GENERAL

Compatible with
ControlSpace ESP-880A, ControlSpace EX-1280, ControlSpace EX-440C, ControlSpace EX-1280C, DS4 Ceiling Audio Solution, ES1 Ceiling Audio Solution

INDICATORS AND CONTROLS

Controls, Front Panel
(2) volume buttons (+, –), (2) select buttons (+, –)

Display
122 × 32 pixel LCD, backlit blue

PHYSICAL

Colors
White

Mounting/Rigging Provisions
2-gang electrical box (North America, Japan)

Product Dimensions (H×W×D)
4.8 in × 4.7 in × 1.5 in (121 mm × 118 mm × 37 mm)

PRODUCT CODES

41761
ControlCenter CC-16, white

INCLUDED IN PACKAGING

(1) ControlSpace CC-16
(1) installation guide
