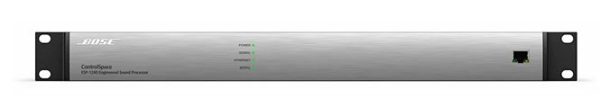

The Bose® ControlSpace® ESP-1240 engineered sound
processor is an open-architecture DSP with 12×4 fixed
analog audio, built-in 8-channel ESPLink output and a rear
panel digital expansion slot offering IP-based network audio
and control card options. This model meets today’s strict
requirements for high-quality signal processing and control
in a cost-effective package. The ESP-1240 is designed for a
wide variety of applications ranging from small self-contained
projects to larger networked applications.

Categories: ,
Brands: BOSE
Brands

Description

The ESP-1240 accommodates a total of 56 audio channels
through analog audio connections (12 input, 4 output),
ESPLink (8 output), and when an optional Dante(tm) audio
network card is used, an additional 32 channels (16 input,
16 output) are available for signal processing, routing and
switching. Alternatively, a Network Control card is available
for clean rear-panel control network connections. For
standalone applications or convenient service access, a
front panel Ethernet connector allows for local configuration
and monitoring. Onboard connectivity includes Serial over
Ethernet, RS-232, 5 control inputs and 5 control outputs.
Any of the elegant Bose wall-mounted user interfaces—
including the programmable CC-64 and CC-16 controllers
and three simplified zone volume interfaces—can be used to
control all Bose networkable devices.
Open architecture configuration and control is enabled
using Bose ControlSpace Designer™ software where an
ever-expanding list of algorithms and improvements offers
a high level of functionality for audio installations. Bose
single-rack-space ESPs are designed for a wide variety of
applications ranging from small self-contained projects to
larger networked applications.



Key Features

• High-quality analog circuitry offers both mic and line-level I/
O, operates with ultra-low noise and 115 dB dynamic range
• Advanced digital signal processing supports audio at 48
kHz sample rate/24-bit, uses a floating-point open architecture
DSP and operates at low latencies for sound system precision
• Expansion card slot supports the use of accessory
networking cards, allowing digital audio to be sent and/or
received from other compatible products
• Optional Dante™ media networking card allows single rack
space ESP products to closely integrate with Bose or other
manufacturers’ products and systems
• Bose® ControlSpace® Designer™ software enables a
large set of signal processing modules, such as automatic
mic mixing, multiband graphic and parametric EQs, Bose
loudspeaker libraries, signal generators, routers, mixers,
AGCs, duckers, gates, compressors, source selectors and
delays
• Front panel RJ-45 Ethernet connection enables localized
configuration and monitoring, while enabling network
passthrough when using a rear-panel network option card
• Built-in Bose ESPLink output sends up to 8 channels
of uncompressed digital audio to ESPLink-equipped Bose
PowerMatch® amplifiers
• A variety of control options – ControlSpace ESP products
are compatible with the programmable Bose CC-64 and
CC-16 controllers and three simplified zone volume interfaces,
as well as potentiometers and switches built by other
manufacturers
• Integration with industry-standard control systems using
a comprehensive serial protocol through onboard RS-232 and
Ethernet ports



Applications

Designed for a wide range of applications, including:
• Auditoriums
• Houses of worship
• Resorts and hospitality venues
• Retail stores
• Schools and universities
• Multi-purpose spaces



Technical Specifications

Integrated DSP
Signal Processor 32-bit fixed/floating-point DSP + ARM, 456 MHz
Maximum Calculation 3.6 GIPS / 2.7 GFLOPS
Delay 43 s
Audio Latency 860 μs (analog in to analog out)
A/D and D/A Converters 24-bit
Sample Rate 48 kHz
Audio Performance Specifications
Frequency Response 20 Hz – 20 kHz (+0.3 dB/-0.1 dB)
THD+N 0.002 % at +4 dBu (A-weighted/20 Hz – 20 kHz)
Channel Separation (Crosstalk) < -105 dB at +4 dBu input and output level, 1 kHz
Dynamic Range > 115 dB, A-weighted 20 Hz – 20 kHz, analog through
Audio Inputs
Input Channels 12 analog (balanced, mic/line level), 16 digital (via option card)
Connectors, Input 3.81 mm Phoenix Contact®, 6-pin
Input Impedance 12 kΩ @ 1 kHz (with or without phantom power active)
Maximum Input Level +24 dBu
Equivalent Input Noise <-119 dBu (22 – 20 kHz, 150 Ω input, 64 dB gain)
Phantom Power +48 VDC, 10 mA, selectable per input
Gain settings 0/14/24/32/44/54/64 dB
Audio Outputs
Output Channels 4 analog (balanced, line level), 8 ESPLink, 16 digital (via optional card)
Connectors, Output 3.81 mm Phoenix Contact®, 6-pin (analog), EIAJ optical (ESPLink)
Output Impedance 66 Ω
Maximum Output Level +24 dBu
Control Inputs
Inputs (Control) 5 analog or digital inputs, 2 kΩ internal pull-up resistor to 5 V, 3.81 mm Phoenix Contact®, 6-pin
Analog Input Voltage Range 0 V to 3.3 V (maximum 5 V)
Digital Input Voltage Range 0 V to 3.3 V (threshold voltage = 1.6 V)
Control Outputs
Outputs (Control) 5 digital outputs, 3.81 mm Phoenix Contact®, 6-pin
Output Voltage High: 8 V (open circuit), 2.5 V @ 10 mA;Low: < 1 V @ 100 mA, push-pull
Output Current 10 mA source, 100 mA sink (24 VDC max external supply voltage)
Indicators and Controls
LED Status Indicators Power/Status, Signal, Ethernet, Serial (RS-232 + CC-16)
Audio Signal Indication Green (-60 to -20 dBFS), Yellow (-20 to -2 dBFS), Red (-2 to 0 dBFS)
Electrical Specifications
Mains Voltage 85 VAC-264 VAC 50/60 Hz
AC Power Consumption < 37 VA typical, over all mains voltages
Mains Connector IEC 60320-C14 (Inlet)
Power Dissipation 22 W (75 BTU/hr, 19 kcal/hr)
Physical
Dimensions 1.7″ H x 19.0″ W x 8.5″ D (44 mm x 483 mm x 215 mm)
Net Weight 5.8 lb (2.6 kg)
Operating Temperature 32ºF – 104ºF (0ºC – 40ºC)
Cooling System Active, side venting
General
PC Configuration Software ControlSpace® Designer™ software
Network Control Ethernet (RJ-45),100Mb
Communications Ports RS-232 (DB9M, DTE), Bose CC-16 (3.81 mm Phoenix Contact®, 3-pin)
Expansion Slots 1 control/audio network
Audio Channel Capacity 56 (12×4 analog, 8 ESPLink out, 16×16 digital with expansion card)
