Bose FREESPACE® 3 SATELLITE SPEAKER RoHS

Bose FREESPACE® 3 SATELLITE SPEAKER RoHS

$226.75

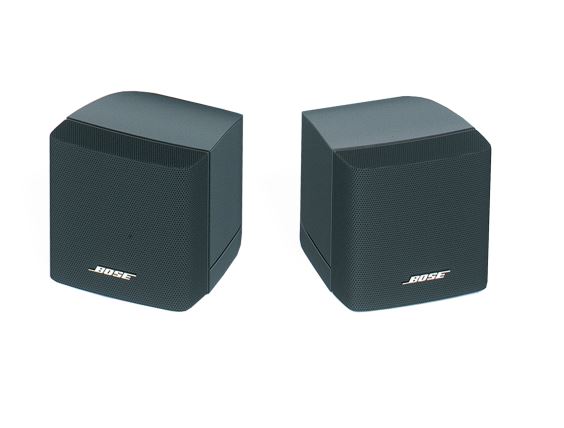

The Bose Professional FreeSpace 3 surface-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. For indoor applications only.

SKU: N/A Categories: , ,
Brands: BOSE
Brands
Clear

Description

FEATURES

  •

    Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations



  •

    Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules



  •

    Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications



  •

    Flush-mount components are plenum rated when used with the optional plenum cover



  •

    Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module



  •

    Can be configured for stereo or mono operation



Applications

Designed for a wide range of applications, including:

  • Retail stores
  • Restaurants and bars
  • Lobbies and conference rooms





SPECS

TECHNICAL SPECIFICATION

PHYSICAL
  • Product Dimensions (H×W×D)
  • 3.0 in × 3.0 in × 4.0 in (77 mm × 77 mm × 102 mm), loudspeaker / 5.9 in (149 mm), loudspeaker depth with bracket
  • Shipping Weight
  • 4.0 lb (1.8 kg)
PERFORMANCE
  • Power Handling, Continuous
  • 12 W
  • Power Handling, Peak
  • 48 W
  • Recommended Signal Processing
  • Recommended
  • Sensitivity (SPL/1 W at 1 m)
  • 84 dB
  • Transformer Taps, 100V
  • N/A
  • Transformer Taps, 70V
  • N/A
  • Coverage, Vertical
  • 170° conical
TRANSDUCERS
  • Low-Frequency Transducer Quantity and Size
  • 1 × 2.5 in (64 mm) full-range driver per satellite

MECHANICAL DIAGRAMS

Freespace 3 s1 cad image

Additional information

colors

Black, White
