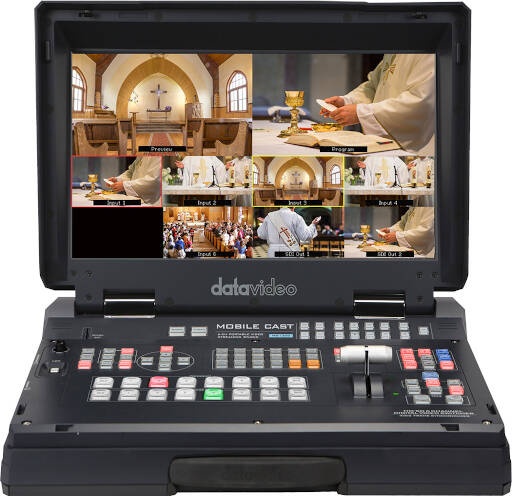

Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio
$5,800.00
- Description
Description
The Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio can switch up to six live 1080i or 720p HD video inputs while recording and streaming the program feed. Effectively, this makes the HS-1300 a portable TV studio that you can take anywhere and set up with minimal effort or extra equipment.
Four SDI and two HDMI inputs can be connected to cameras or other consumer or professional video sources. Audio can be brought in from a separately available mixing board via a pair of XLR inputs. Recording and streaming uses the ubiquitous H.264 format, at up to 10 Mb/s.
A single mix-effect bus features two upstream keyers, two downstream keyers with linear and luma key modes, wipe, cut, and mix transitions, plus one picture-in-picture, and all with full preview. Concert productions, events, houses of worship, and educational institutions with live sports programming are some of the few use cases where the HS-1300 could be useful.
When it’s time to wrap production, close the 17.3″ screen, unplug the video sources, and carry the switcher using the built-in handle, like a suitcase.
Features:
Supports 6 video inputs (4 SDI, 2 HDMI) and 3 video outputs (2 SDI, 3 HDMI)
Encodes to different bit rates for recording and streaming
H.264 AVC encoding up to 10 Mb/s
Two XLR audio inputs
Frame store from any input
Cross-point assignment
Tally and GPI output
17.3″ LCD screen with 1600 x 900 resolution
Easy-to-navigate on-screen menu system
Headphone jack for audio monitoring in program display mode
In The Box:
Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio
Power Supply with Power Cord
Specifications:
| Video Standard HDVideo Format 1080i 50/59.94/60Hz 720p 50/59.94/60HzInput Routable / Crosspoint All 6, repeatable Video Input Computer Graphic Interface Down-converted Output Video Output 2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview Audio Input Audio Output Digital Embedded Audio Support Input A+V Switching USK DSK Picture in Picture Logo Insertion Built-in Audio Mixer Built-in Monitor Display Built-in Intercom & Tally Streaming Video Encode Streaming Audio Encode Streaming Protocol Streaming Control Recording File System Recording File Format Recording Setting Control Special Features Dimension (LxWxH) Weight Power Operating Temp. Range Options What’s in the Box Drive Compatibility |
