Datavideo TLM-170LR 17.3″ Full HD Rackmount Monitor with 3G-SDI & HDMI
$1,798.50
- Description
Description

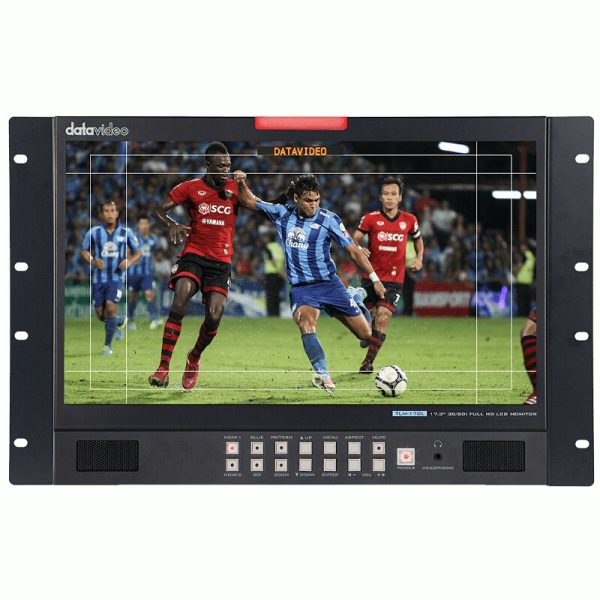

The TLM-170LR 17.3″ Full HD Rackmount Monitor from Datavideo features a 1080p display and supports up to 1080p60 video via a 3G/HD/SD-SDI input, two HDMI inputs, and an SDI loop-through output. The monitor features a dual-color LED tally light on the front at the very top, indicating live or cued status.
Other features include pixel zoom up to 8x, blue only, and safe frame. The monitor comes with a 7 RU rack ear kit for rackmount installation.
Features:
1920x1080P Panel resolution
Support 3G-SDI video input with loop-through output
Support two HDMI inputs
Monitor Underscan and Overscan mode selection
Color temperature for user to select
Front panel Headphone Jacks
Bi-colour Tally light and 3.5mm Jack Tally input socket
Safe area
Blue Only
Support embedded audio on SDI & HDMI (ver1.3)
Zoom (HD only)
USB for FW upgrade
In the Box:
Datavideo TLM-170LR 17.3″ Full HD Rackmount Monitor with 3G-SDI & HDMI
12 VDC AD Switch
Rack Kit
Screw Kit
Set of 5 Cable Ties
Specifications:
Screen
17.3″ LED Backlit
Chassis
7RU Rack Mount
Resolution
1920×1080
Viewing Angle
(H) +70/-70°
(V) +60/-60°
Luminance/Contrast
300cd/m²
400:1
Video Inputs
1x 3G/HD/SD-SDI
2x HDMI
Loop Through
1x 3G/HD/SD-SDI
Supported Input Resolutions
1080p(23.98/24SF/24/25/29.97/30/50/59.95/60Hz),
1080i(50/59.94/60Hz),
720p(50/59.94/60Hz),
576i(PAL), 480i(NTSC)
Aspect Ratio
16:9, 4:3
Tally LED
Live (Red)
Cued (Green)
Audio In/Out
Embedded Audio on SDI and HDMI
Special Features
3G-SDI Support, Blue Only, Safe Frame,
Pixel Zoom up to 8x
Dimension (LxWxH)
403 x 305 x 41 mm
Weight
4.1 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 16W
