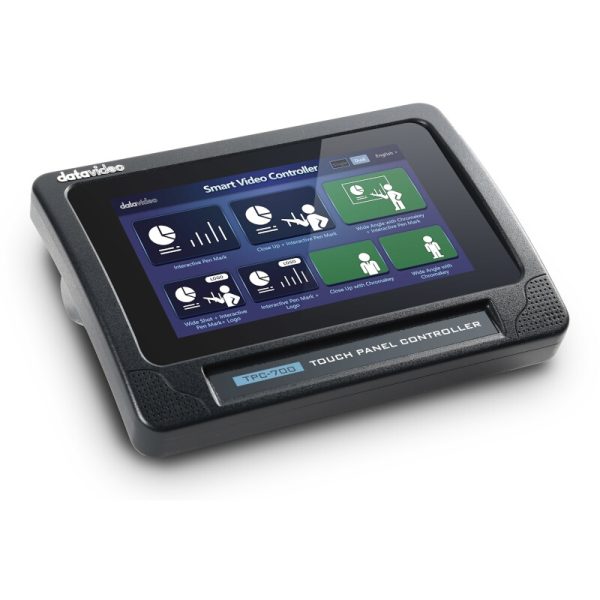

Datavideo TPC-700 7″ Touch Panel Controller for the HS/SE-3200 and VGB-2000

Description

The 7″ Touch Panel Controller for the HS/SE-3200 and VGB-2000 from Datavideo provides you with a touch-panel interface for working with all Datavideo 3200 and VGB-2000 switchers. Simply connect this 800 x 480 resolution touchscreen to a compatible switcher, and it allows you to customize the switcher’s keys. You can use the TPC-700 as a multi-camera virtual switching studio controlling a compatible switcher.

The TCP-700 supports both RS-232 and DVIP protocols, and it has a dedicated RJ45 port for each protocol. Connect to the HS/SE-3200 series of switchers using DVIP, and use the RS-232 port for connecting to the VGB-2000. The touch panel can be wall mounted, and it has both 75 x 75mm and 100 x 100mm VESA mounting patterns for mounting.



Built-In HS/SE-3200 App Interface
The TPC-700 comes with a pre-installed control App for the HS/SE-3200 switcher. This appears as selectable tabs for Virtual Studio, AUX, Cross-Point, Flex Source, PIP, and Setup. Paging through these tabs and their contents lets you easily setup and control your SE-3200 switcher from the touchpad.

Pre-Saved Virtual Scenes wth SE-3200 and TPC-700
The TPC-700 will recall the No. 101~No. 108 virtual scens that are pre-saved on the SE3200.



In the Box:
Datavideo 7″ Touch Panel Controller for the HS/SE-3200 and VGB-2000
Power Supply



Specifications:

Touch Screen
7” capacitive touch screen

Screen Resolution
800 x 480

Firmware Upgrade
Via USB 2.0

Control
RS-232 (RJ-45)

Power
DC 12V

Dimensions
220x152x79mm

Weight
0.85KG
