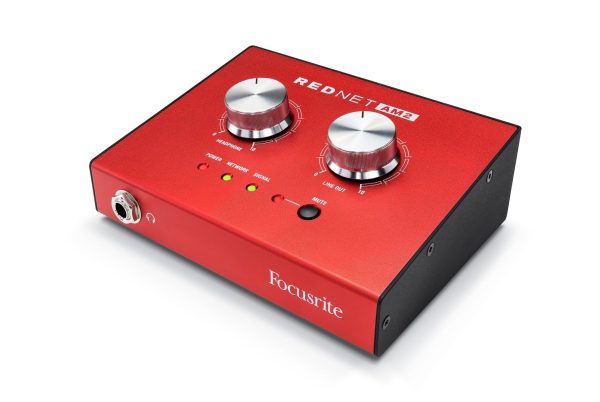

Focusrite RedNet AM2

Stereo Dante headphone amplifier and line output interface solution with PoE

The RedNet AM2 delivers state-of-the-art D/A conversion (sample rates up to 96kHz, with greater than 118dB dynamic range) for critical monitoring on headphones or speakers. The unit is fitted with large volume knobs for headphone and line-output levels; the line-outs also sport a handy mute button with indicator LED. Power, signal level, and network indicators are also onboard to keep you status savvy. To connect to your network or daisy-chain to other network devices, the AM2 provides dual locking Ethercon connectors. The Focusrite RedNet AM2 can be network powered via PoE (Power over Ethernet) or by the rear-panel barrel connector and included DC power supply.

Designed to drive high or low impedance headphones at high levels, the headphone output delivers significant audio output power. The compact unit, mounted in an enclosure based around a sturdy road-worthy aluminium extrusion, is fitted with non-slip feet, and can either sit securely on a flat surface or be mounted on top of a mic stand using the standard threaded bush incorporated in the base.

RedNet AM2 includes the latest two-channel Dante receiver and provides high-quality digital to analogue conversion at up to 96kHz for accurate monitoring on loudspeakers or headphones. Two large volume control knobs are provided for Headphone and Line output levels, the latter featuring a mute button with associated LED. Other indicators show the presence of power, network and signal level.

Dual locking etherCON connectors are included to connect the network and to daisy-chain to additional network devices. The unit is powered via Power over Ethernet (PoE) or via the rear-panel barrel connector and included DC power supply.

Key Features

Cost-effective headphone/loudspeaker stereo monitoring solution for Dante offers lower system deployment costs

Superb digital to analogue conversion at up to 96kHz provides transparent and accurate audio quality
Powerful headphone amp delivers plenty of level even with high-Z headphones for maximum high-quality audibility

Independent headphone/line output level controls for maximum control

Line output mute switch instantly kills the signal to external speakers or power amps

Integrated Gigabit Ethernet switch allows connection of a second device for simpler cabling

Built-in mic stand mount plus non-slip feet – mount RedNet AM2 to a mic stand or place securely on a surface

Supported Sample Rates

44.1, 48, 88.2 and 96kHz at 24 bit
