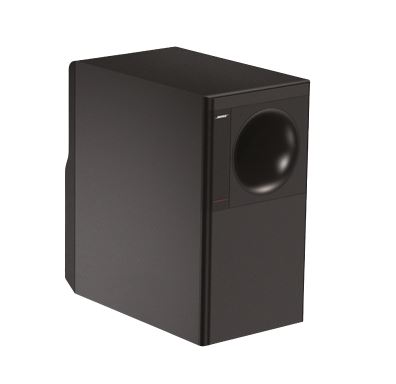

Name: FREESPACE® 3 ACOUSTIMASS MODULE RoHS
SKU: 14551
Price: 624.31 SGD
Availability: InStock

FREESPACE® 3 ACOUSTIMASS MODULE RoHS

$624.31

Designed to provide surface-mount bass augmentation for new and existing background music systems. Features one 5.25-inch (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion.

For indoor applications only.

SKU: N/A Categories: ALL PRODUCTS, PA SYSTEM, Subwoofer

Brands: BOSE

Description
Additional information

Description

Low-frequency loudspeaker featuring one 5.25-inch (133 mm) woofer that delivers deep, non-localized bass down to 40 Hz without audible distortion. For surface-mount applications.
Acoustimass speaker technology filters out audible distortion to deliver non-localized bass
Designed to work with the FreeSpace 3 surface and flush satellite speakers, or existing systems where additional bass reinforcement is desired
Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module
Selectable 70/100V or low impedance

Applications

Designed for a wide range of applications, including:

Retail stores
Restaurants and bars
Lobbies and conference rooms

TECHNICAL SPECIFICATION

COMPLIANCE

EN 54-24 Certified
No

PHYSICAL

Colors
Black, white

Enclosure Material
High-density wood composite with solid color PVC laminate

Environmental Testing
Indoor only

Mounting/Rigging Provisions
Wall-mount bracket, preattached

Net Weight
17.5 lb (7.9 kg)

Product Dimensions (H×W×D)
14.0 in × 7.5 in × 13.6 in (356 mm × 191 mm × 345 mm) / width with bracket: 8.8 in (222 mm)

Shipping Weight
25.0 lb (11.3 kg)

PERFORMANCE

Frequency Range (-10 dB)
40 Hz – 315 Hz

Coverage, Horizontal
Omnidirectional below 200 Hz

Maximum SPL at 1 m
Per channel: 96 dB continuous, 102 dB peak / Mono: 102 dB continuous, 108 dB peak

Nominal Impedance
5 Ω mono direct (transformer bypassed)

Power Handling, Continuous
70/100 V: 200 W mono / Low impedance: 50 W per channel stereo or 100 W mono

Power Handling, Peak
70/100 V: 800 W peak mono / Low impedance: 200 W peak per channel stereo or 400 W peak mono

Recommended Signal Processing
Recommended

Sensitivity (SPL/1 W at 1 m)
Per channel: 76 dB / Mono: 79 dB

Transformer Taps, 100V
25 W, 50 W, 100 W, 200 W

Transformer Taps, 70V
25 W, 50 W, 100 W, 200 W

Coverage, Vertical
Omnidirectional below 200 Hz

TRANSDUCERS

Driver Protection
Recommended high-pass filter 40 Hz high-pass filter

Low-Frequency Transducer Quantity and Size
5.25 in (133 mm) dual-voice-coil low-frequency driver

MECHANICAL DIAGRAMS

Front View

Back View

Side View

Additional information

colors	Black, White
