FREESPACE® 3 II SATELLITE FLUSH RoHS

FREESPACE® 3 II SATELLITE FLUSH RoHS

$226.75

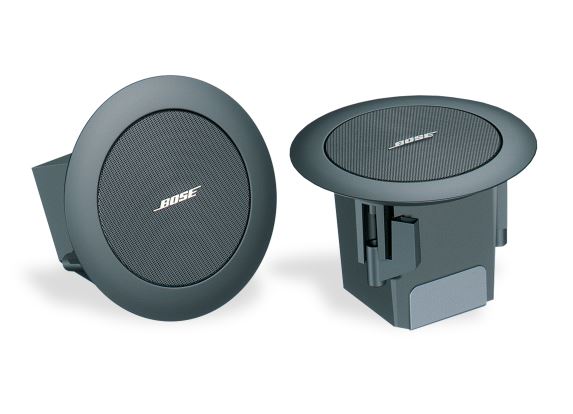

The Bose Professional FreeSpace 3 flush-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. For indoor applications only.

SKU: N/A Categories: , ,
Brands: BOSE
Brands
Clear

Description

FEATURES

  •

    Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations



  •

    Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules



  •

    Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications



  •

    Flush-mount components are plenum rated when used with the optional plenum cover



  •

    Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module



  •

    Can be configured for stereo or mono operation



Applications

Designed for a wide range of applications, including:

  • Retail stores
  • Restaurants and bars
  • Lobbies and conference rooms

SPECS

TECHNICAL SPECIFICATION

PHYSICAL
  • Colors
  • Black, white
  • Enclosure Material
  • PC/ABS
  • Environmental Testing
  • Indoor only
  • Grille Material
  • Expanded metal
  • Mounting/Rigging Provisions
  • (3) mounting arms, (1) seismic chain/safety cable attachment point
  • Net Weight
  • 1.9 lb (0.9 kg)
  • Product Dimensions (H×W×D)
  • 6.2 in × 4.8 in (157 mm × 123 mm), loudspeaker diameter × depth / 5.0 in (127 mm), ceiling hole diameter
  • Shipping Weight
  • 5.0 lb (2.3 kg)
PERFORMANCE
  • Frequency Range (-10 dB)
  • 170 Hz – 20,000 Hz
  • Coverage, Horizontal
  • 170° conical
  • Maximum SPL at 1 m
  • Pink noise: 95 dB continuous, 101 dB peak / IEC noise: 92 dB continuous, 108 dB peak
  • Nominal Impedance
  • 6 Ω
  • Power Handling, Continuous
  • 12 W
  • Power Handling, Peak
  • 48 W
  • Recommended Signal Processing
  • Recommended
  • Sensitivity (SPL/1 W at 1 m)
  • 84 dB
  • Transformer Taps, 100V
  • N/A
  • Transformer Taps, 70V
  • N/A
  • Coverage, Vertical
  • 170° conical
TRANSDUCERS
  • Low-Frequency Transducer Quantity and Size
  • 1 × 2.5 in (64 mm) full-range driver per satellite

MECHANICAL DIAGRAMS

freespace 3 cad
Rear View
freespace 3 cad
Front View
freespace 3 cad
Side View

Additional information

colors

Black, White
