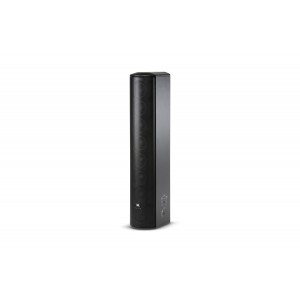

JBL CBT 100LA-1
$1,417.00
- Description
Description
DESCRIPTION
Constant Beamwidth Technology™ Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.
The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.
FEATURES
- Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
- Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for long-throw applications.
- Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
- Dynamic SonicGuard™ overload protection
- Swivel (pan)/tilt wall bracket included.
- Built-in 70V/100V transformer, plus 8 ohm direct capability.
SPECIFICATIONS
| Components | Sixteen 50 mm (2 in) Full-Range |
| Frequency Range (-10dB) | 80Hz – 20kHz |
| Vertical Coverage | Vertical
Narrow Mode: 15° (2 kHz – 16 kHz) (±10°) Broad Mode: 40° (1 kHz – 16 kHz) (±10°) Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°) |
| Sensitivity (2.83V@1m) | Narrow: (speech mode) 96 dB (2 kHz – 14 kHz )
(music mode) 93 dB (300 Hz – 18 kHz) Broad: (speech mode) 93 dB (2 kHz – 14 kHz) (music mode) 90 dB (300 Hz – 18 kHz) |
| Nominal Impedance | 8 ohms (in Thru mode) |
| Power Capacity (8ohm setting) | 325 W (1300W peak), 2 hrs
200 W (800W peak), 100 hrs |
| Max SPL | Narrow: (speech mode) 121 dB cont ave (127 peak)
(music mode) 118 dB cont ave (124 peak) Broad: (speech mode) 118 dB cont ave (124 peak) (music mode) 115 dB cont ave (121 peak) |
| 70V/100V Transformer Taps | 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch |
| Enclosure | Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability | IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant. |
| Insert Points | 18 M6 insert points on back panel. |
| Mounting | Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt — see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension. |
| Dimensions (H x W x D) | 1000 x 98.5 x 153
(39.4 in x 3.8 in x 6.0 in) |
| Net Weight | 7.2kg |
| Included Accessories | Swivel (pan) / tilt wall bracket |
| Optional Accessories | MTC-PC2 terminal panel cover
MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand |
