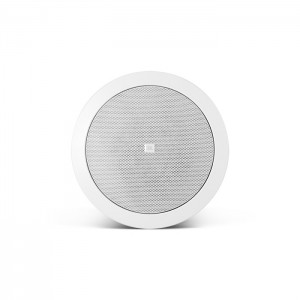

JBL Control 24CT – White (Pair)
$305.00
- Description
Description
DESCRIPTION
The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.
The Control 24CT includes a 30W multitap transformer for use in either 70.7V or 100V distributed-line systems. The transformer effectively limits the power to the speaker, so SonicGuard is not included in the Control 24CT. Taps are selected with a rotary switch conveniently located on the front panel, but protected under the grille, so that the speaker does not have to be removed to adjust tap settings.
All JBL Control Contractor loudspeakers – both ceiling speakers and surface-mount models – are designed with a similar sonic signature, allowing for mixing and matching of the various models within an application, providing a similar tonal character throughout the entire listening area
FEATURES
- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
- High power, wide frequency response and low distortion for high sound level capability.
- Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance.
- JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improvedsystem reliability.
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
SPECIFICATIONS
| Frequency Range | 80 Hz – 20 kHz |
| Power Capacity | 80 W Continuous Program Power; 40 W Continuous Pink Noise |
| Nominal Sensitivity | 86 dB SPL @ 1 m (3.3 ft) |
| Nominal Coverage Angle | 130° conical coverage |
| Directivity Factor (Q) | 2.4 dB averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 dB averaged 500 Hz to 4 kHz |
| Rated Maximum SPL | 102 dB @ 1 m (3.3 ft) |
| Nominal Impedance | 16 ohms (Min Z 16.1 ohms @ 320 Hz) (24C) |
