LD System Stinger SUB 15A G3

LD System Stinger SUB 15A G3

$1,149.00

  • LDESUB15AG3
  • Active 15” bass reflex PA subwoofer
  • High-efficiency 450 watts RMS digital power stage and 133 dB max. SPL
  • 15” custom design woofer for extended low end down to 40 Hz
Category:
Brands: LD System
Brands

Description

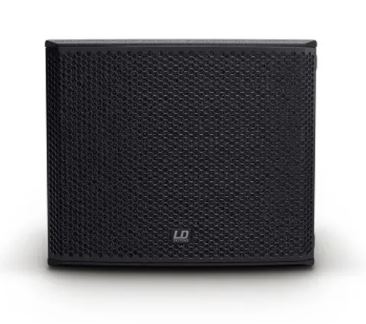

Active 15″ bass-reflex PA subwoofer

Engineered for rock-solid reliability day in, day out this active subwoofer is a truly professional performer. With built-in presets for quick system integration and a variety of cardioid array configurations it is completely user-friendly. The Stinger® SUB 15 A G3 is powered by high efficiency Class D amplification with a mighty 450 watts RMS output. It drives a custom designed 15” woofer delivering a huge bottom end with terrific punch and excellent definition.

The Stinger® SUB 15 A G3 incorporates LD Systems’ proprietary DynX® DSP technology to ensure top-level performance and pristine, distortion-free bass reproduction at all times. Designed to be a real workhorse throughout, the well-braced bass reflex enclosure is constructed for horizontal and vertical orientation. It is made of rigid 18 mm birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, M20 threaded pole insert, stacking recesses and ergonomic handles the Stinger® 15 A G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.

FEATURES

  • Active 15” bass reflex PA subwoofer
  • High-efficiency 450 watts RMS digital power stage and 133 dB max. SPL
  • 15” custom design woofer for extended low end down to 40 Hz
  • DynX® DSP technology for distortion-free performance
  • 80, 100 and 120 Hz low pass presets
  • Cardioid subwoofer array presets
  • Horizontal or vertical placement
  • 18 mm birch ply cabinet with ultra rugged polyurea finish
  • Ergonomic handles and stacking recesses for easy transport and setup
  • Shock-resistant front grill provides maximum speaker protection
  • Insert for M20 threaded poles
  • Smart transport accessories



Specifications:

Brands LD System
Color Black
Size 15″
Product Type PA Subwoofers
Product type PA subwoofer
Type active
Low/mid driver dimensions 15 “
Woofer size 381 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 3 “
Woofer voice coil (mm) 76.5 mm
Amplifier Class D
RMS 450 W
Peak power 900 W
Frequency response 40 – Low-Pass Hz
Max. SPL (peak) 133 dB
Protection circuits DC , limiter , over voltage , short circuit
Input impedance 30000 Ohm(s)
Input sensitivity 0.3 V
Controls Main level , Mode
Indicators Limit , Mode , On , Protect (protection circuit engaged) , Signal
Line inputs 2
Line input connectors 6.3 mm jack , XLR
Line outputs 2
Line output connectors XLR
Operating voltage 100 – 120 V / 50 – 60 Hz or 200 – 240 V / 50 – 60 Hz (automatic switching) , SMPS
Power Consumption (max.) 600 W
Operating Temperature 0 – 40 °C
Relative Humidity < 80% (non-condensing)
Cabinet material 18 mm Plywood
Cabinet surface Polyurea
Cabinet construction vented
Width 567 mm
Height 477 mm
Depth 624 mm
Weight 31,9 kg
