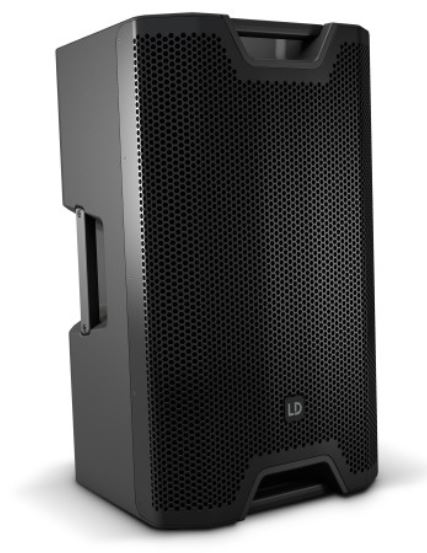

LD Systems ICOA15 15″ Passive Coaxial PA Loudspeaker

Description

This 15″ full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 15 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible.

The horn-loaded woofer’s outstanding bass reproduction makes the ICOA 15 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility.

Deployed vertically, the speaker impresses as a satellite; horizontally, it’s excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 125 dB peak and has 1000 Watt peak performance.

Thanks to its shock-resistant front grille and ideal 55° tilt angle make the ICOA 15 outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. Four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.



Specs:

Product type
PA loudspeaker
Type
Passive
Low/mid Woofer dimensions
15 “
Woofer dimensions (mm)
381 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Horn
BEM optimized CD Horn
HF driver dimensions
1 “
HF driver dimention (mm)
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
HF driver voice coil
1.4 “
HF driver voice coil (mm)
35 mm
Load rating (RMS)
250 W
Dispersion (H x V)
90° x 50°
Peak power
1000 W
Frequency response
48 Hz – 20000 Hz
Crossover frequency
2000 Hz
SPL (1W/1m)
95 dB
Max. SPL
125 dB
Impedance
8 Ohm(s)
Loudspeaker inputs
1
Speaker input connections
Speakon compatible
Loudspeaker outputs
1
Speaker output connections
Speakon compatible
Cabinet material
Polypropylene
Cabinet construction
Bass Reflex
Mounting
36mm flange (0°, 5°), 6 x M10 flying points
Monitor angle
55 °
Width
416 mm
Height
695 mm
Depth
415 mm
Weight
24,7 kg
