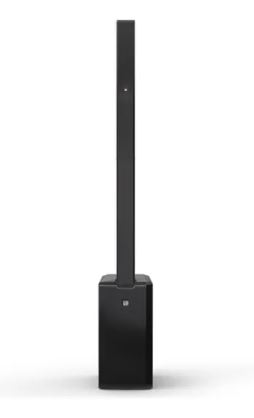

LD Systems MAUI 11 G3
$2,249.00
- Powerful bass reproduction with 2 x 8” subwoofers
- Balanced mids thanks to 6 x 3.5” full-range speakers
- Precise and silky highs with 2 x 1“ high-frequency drivers
- Cardioid column for controlled low-mid and midrange sound dispersion
- Description
Description
Portable 700W Powered Column PA System (Black)
DJs, singer-songwriters, and smaller bands in need of an all-in-one PA package that sounds great and is easy to transport will appreciate the black LD Systems MAUI 11 G3, a compact column array well suited for concerts, mobile DJs, and as a public address system at weddings, corporate events, and more. The MAUI 11 G3 delivers a powerful and precise sound, thanks to the 700W RMS power (1400W peak) Class-D amplifier that’s housed in the dual 8″ subwoofer module. The columns are equipped with 6 x 3.5″ midrange drivers and 2 x 1″ tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. Additionally, the curved waveguide ahead of the tweeters carries the high frequencies evenly to the very rear audience areas.
The LD Systems’ engineers fine-tuned the system to reduce harmonic distortion and interference and make the sound even more transparent, vibrant, and powerful, resulting in a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field. The MAUI 11 G3 is capable of cardioid subwoofer operation with the use of an additional subwoofer (separately sold). Simply press the Cardioid button to enable the onboard DSP’s cardioid mode, which can lower the rear volume up to 18 dB. In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.
FEATURES
- Powerful bass reproduction with 2 x 8” subwoofers
- Balanced mids thanks to 6 x 3.5” full-range speakers
- Precise and silky highs with 2 x 1“ high-frequency drivers
- Cardioid column for controlled low-mid and midrange sound dispersion
- BEM optimized HF waveguide and midrange phase plugs for homogeneous dispersion
- Optimized bass-reflex design improves bass response and reduces air flow noise
- Can be combined with an additional subwoofer for increased low end or for cardioid subwoofer setups
- Dynx DSP for distortion-free sound even at maximum volume
- AAC coding for HD Bluetooth 5.0 streaming
- Automatic setup detection for quick and easy operation
- Fast and simple assembly without stands or cables
- Rugged birch plywood subwoofer housing with durable polyurea-coating
- Lightweight, powder coated aluminum column housing
- For DJs, Singer-Songwriters, Small Bands
- Bluetooth Audio with Stereo Streaming
- Powered Subwoofer Module with Sat Out
- Array with 6 x Midrange + 2 x Tweeters
- 120 x 30° Coverage, 39 Hz to 20 kHz
- 2 x Combo XLR-1/4″ Inputs
- 2 x XLR Outputs, Subwoofer Ext Out
- Cardioid Subwoofer Setting
- Includes Power Cord
Specifications:
| Brands | LD System |
|---|---|
| Color | Black |
| Product Type | All in one PA Speakers |
| Speaker Configuration | 1 x 3-Way Speaker Column with Subwoofer |
| Number of Input Channels | 2 (2 x Mono) |
| Amplifier Power Rating | 700 W RMS |
| HF Driver | 2 x 0.5″ / 12.7 mm Horn-Loaded Tweeter |
| MF Driver | 6 x 3.5″ / 88.9 mm |
| Audio I/O | 2 x Combo XLR-1/4″ 3-Pin Female Balanced/Unbalanced Line Input
2 x XLR 3-Pin Male Balanced Line Thru 1 x XLR 3-Pin Male Balanced Subwoofer Output Show More |
| Bluetooth | 5.0 |
Portable PA System
| Speaker Configuration | 1 x 3-Way Speaker Column with Subwoofer |
| Number of Input Channels | 2 (2 x Mono) |
| Amplifier Power Rating | 700 W RMS |
| Amplifier Class | Class-D |
Speakers
| Enclosure Type | Bass-Reflex |
| HF Driver | 2 x 0.5″ / 12.7 mm Horn-Loaded Tweeter |
| HF Voice Coil | 1″ / 25.4 mm |
| MF Driver | 6 x 3.5″ / 88.9 mm |
| MF Voice Coil | 0.75″ / 19.05 mm |
| Subwoofer Driver | 2 x 8″ / 203.2 mm Woofer |
| Subwoofer Voice Coil | 2″ / 50.8 mm |
| Magnet | HF Driver:
Neodymium MF Driver/Subwoofer: Ferrite |
Signal Processing
| Input Pad | No |
| EQ | No |
| Semi-Parametric EQ | No |
| Effects | No |
| DSP | 24-Bit DSP at 48 kHz |
Performance
| Frequency Response | 39 Hz to 20 kHz |
| Maximum SPL | 125 dB |
| Coverage Angle | 120° H x 30° V |
| Protections | DC Fault, Output Limiter, Short Circuit, Thermal |
Connectivity
| Audio I/O | 2 x Combo XLR-1/4″ 3-Pin Female Balanced/Unbalanced Line Input
2 x XLR 3-Pin Male Balanced Line Thru 1 x XLR 3-Pin Male Balanced Subwoofer Output |
| USB | No |
| Mobile App Compatible | No
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| Network I/O | No |
| Wireless Connectivity | Bluetooth |
| Bluetooth | 5.0 |
| Bluetooth Profiles | A2DP |
Power
| AC Input Power | 100 to 120 VAC, 50 / 60 Hz (T 3.15 A L 250 V)
220 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V) |
| Power Consumption | 300 W |
| AC Power I/O | 1 x IEC Input |
Physical
| Transport Options | Subwoofer:
1 x Handle (Top) |
| Cooling | Convection |
| Construction Material | Aluminum, Plywood, Polyurethane |
| Environmental Protection | No |
| Dimensions | System:
80.8″ / 2052 mm (Full Assembly) Subwoofer: 23.9 x 15.9 x 12″ / 607 x 403 x 305 mm Top Speaker: 57.5 x 5.3 x 4.1″ / 1460 x 135 x 103 mm |
| Weight | System:
67.7 lb / 30.7 kg (Full Assembly) Subwoofer: 45.2 lb / 20.5 kg Top Speaker: 22.5 lb / 10.2 kg |
