- Description
Description
Control Everything From Anywhere
The Most Intuitive Control App Ever
The Master Fader control app is where everything happens. Ultra-fast navigation with View Groups and overview, quick setup with factory and user-definable presets, mic pre view and recallable Onyx+ mic pres and prevent unwanted adjustments with access limits.
Flexible 32-Channel Recording/Playback

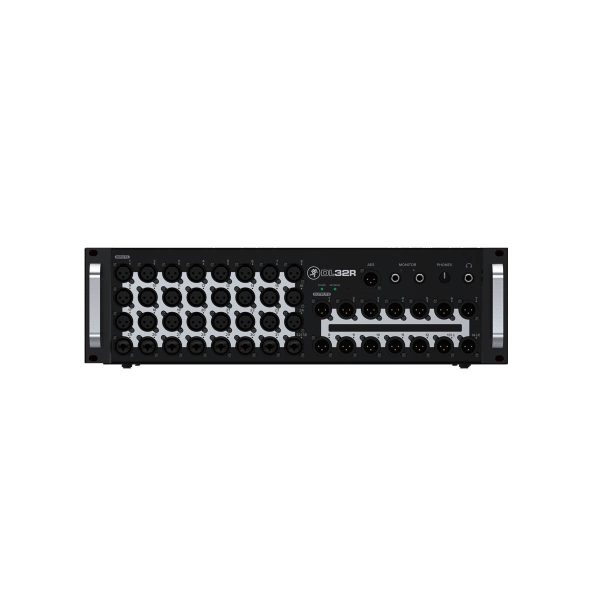

Modern applications demand multi-track recording and playback. With the DL32R, you get flexibility, with two different ways to record, each with their own strengths. Playback 32 tracks for the ultimate virtual sound check. DSP is what makes digital mixing possible. With the DL32R, you get powerful processing that replaces racks and racks of outboard gear, takes up WAY less space and is incredibly affordable.
Smart Dante Integration
Connect the Mackie DL32R to a Dante-powered audio network, delivering unmatched audio quality and extremely flexible routing.
Type | Digital |
Channels | 32 |
Inputs – Mic Preamps | 24 x XLR, 8 x XLR/TRS Combo |
Phantom Power | 32 x Channels |
Outputs – Digital | 1 x AES/EBU (XLR) |
Outputs – Main | 14 x XLR (Assignable) |
Outputs – Other | 2 x TRS (Monitor) |
Aux Sends | 14 x Stereo-linkable |
Busses/Groups | 28 x Bus |
Data I/O | 1 x Ethernet (WiFi Router Not Included) |
USB | 1 x Type B, 1 x Type A |
Computer Connectivity | USB (32 x 32) |
I/O Expansion Slots | 1 x Slot (Dante Expansion Card) |
Headphones | 1 x 1/4″ |
Faders | Virtual |
EQ Bands | 4-band Parametric, 31-band Graphic |
Effects | Yes |
Rackmountable | Yes |
Height | 5.4″ |
Depth | 17.5″ |
Width | 19″ |
Weight | 8.1KG |
