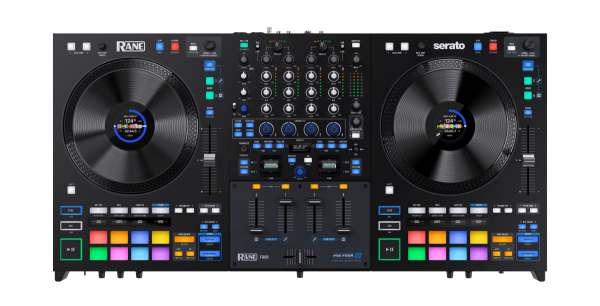

Rane DJ Four

Rane DJ Four

Rane Seventy Two
12″ Serato Performance Series BLACK (Pair)

$2,599.00

Categories: , ,
Brands: RANE
Brands

Description

Tech Specs

Digital Audio
  • Converters: Cirrus Logic, 24-bit PCM, 48 kHz
  • Digital Signal Processing: 32-bit, Floating Point, Double precisio
  • Dynamic Range (A-weighted, unity gain):
    • ADC: 113 dB
    • DAC: 113 dB
    • CD Input to Analog Output: 110 dB
    • CD Input to USB Output: 113 dB
    • USB Input to Analog Output: 113 dB
Inputs
  • Microphone 1/2 (Combo XLR/1/4″ [6.35 mm] TRS):
    • Analog Gain: 25 dB
    • Maximum Input: 110 mV
    • Gain Trim: Off to +26 dB (unity at center)
    • Tone Control: 2-band
  • Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):
    • Line: Line
    • Maximum Input: 4 Vrms
    • Gain Trim: Off to +12 dB
    • Tone Control: 3-band, full-cut to +10 dB
    • THD+N (20 kHz BW @ 1 kHz: 0.004%
    • Phono: RIAA
    • RIAA Curve: +/-0.25 dB
    • Gain (@ 1 kHz): 31.5 dB
    • Maximum Input (@ 1 kHz): 106 mV
    • Dynamic Range (A-weighted): 102 dB
Outputs
  • Main Outputs (XLR):
    • Gain Trim: Off to 0 dB
    • Maximum Output: 8 Vrms
    • THD+N (20 kHz BW @ 1 kHz): 0.004%
    • Frequency Response: Flat – 20-20kHz
  • Main Outputs (RCA stereo pair):
    • Maximum Output: 4 Vrms
    • THD+N (20 kHz BW @ 1 kHz): 0.004%
    • Frequency Response: Flat – 20-20kHz
  • Booth Outputs (1/4”):
    • Gain Trim: Off to 0 dB
    • Maximum Output: 8 Vrms
    • THD+N (20 kHz BW @ 1 kHz): 0.004%
    • Frequency Response: Flat – 20-20kHz
  • Headphone Outputs (1/4″/6.35 mm and 1/8″/3.5 mm TRS):
    • Maximum Output: 4 Vrms Voltage: (no load)
    • Output Power: 50 mW (50 ohms)
    • Dynamic Range (A-weighted): 108 dB
Pads
  • (16) on/off multi-color back-lit pads (8 per deck, 9 modes each
Wheel Displays
  • (2) 320 x 240 Color LCD’s
Pad & FX Displays
  • (9) 128 x 32 Monochrome OLED’s
Faders
  • (1) MAG FOUR tension-adjustable crossfader with contour
  • (4) Standard channel faders
Connections
  • (2) XLR outputs (Main)
  • (2) 1/4” outputs (Booth)
  • (1) RCA stereo output pair (Main)
  • (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
  • (2) RCA stereo input pairs (Deck 3-4)
  • (1) 1/4” (6.35 mm) TRS output (Headphones)
  • (1) 1/8” (3.5 mm) TRS output (Headphones)
  • (2) USB Type-B ports
  • (1) IEC power cable input
Power
  • Connection: IEC
  • Voltage: 100–240 V, 50/60 Hz
  • Consumption: 20 W
Dimensions
  • Dimensions (width x depth x height): 30.8” x 15.9” x 4.2”
    782.32 x 403.8 x 106.6 mm
Weight (including platters)
  • 18.25 lbs.
    8.27 kg
