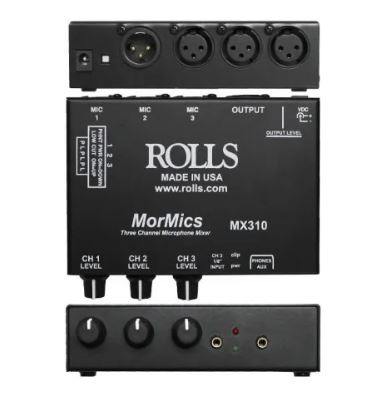

Rolls MX310 3 Ch. Mic Mixer/Combiner
$219.69
Key Features:
- Balanced XLR inputs
- Phantom power selectable for each mic input
- Stereo 1/8″ Auxillary input
- Allows connection to a camera, computer, ear buds, or other monitoring
- Description
Description
The MX310 is a professional three channel microphone mixer. The mixer was originally designed for people that need to plug 2 or 3 more mics into a mic input. With balanced XLR inputs, phantom power select able for each mic input, XLR Mic or Line level output the MX310 can be used in many different applications. A stereo 1/8″ (3.5mm) Auxiliary input has been added for connection to any stereo line-level source such as a phone, AM/FM tuner, CD player etc. An additional 3.5mm stereo output jack is provided for connection to a camera, computer, ear buds, or other monitoring.
In the Box:
MX310 x1
Specifications:
| Input Impedance: 600 Ohms Output Impedance: 600 Ohms Mic – 200 Ohms line THD Noise: .05% Typical Frequency Response: 20 Hz – 20 kHz ( 0 / -3 dB) Voltage Gain: 50 dB line/10 dB Mic Low Cut: -3 dB @ 100 Hz Current Draw: 20 mA Phantom Power: 15 VDC Maximum Supply Voltage: 16 VDC Size: 5.25″ x 3.75″ x 1.5″ Weight: 1 lbs. |
