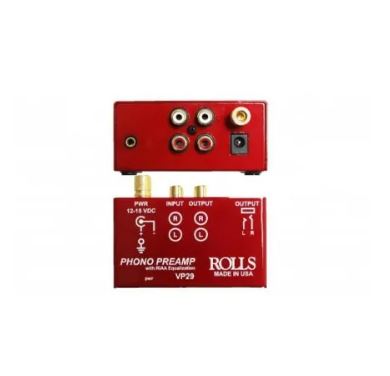

Rolls VP29 Phono Preamp

Rolls VP29 Phono Preamp

$120.45

Key Features:

  • RIAA EQ Compensation
  • RCA I/O
  • Ground Terminal
Categories: ,
Brands: Rolls
Brands

Description

The VP29 is a briliant phono preamplifier. Its circuitry is designed not only to provide the exact RIAA equalization curve, but smooth and quiet operation.



In the Box:

Rolls VP29 Phono Preamp
External Power Supply



Specifications:

Input Sensitivity: 42 dB gain 1kHz, 47k Ohms
Input Capacitance: 120pf
Sensitivity: 5mV for 635mV output
Input Impedance: 47k Ohms
Frequency Response: / – .5 dB 20 Hz – 20 kHz (Conforms to RIAA Equalization Curve)
PWR: 9 – 15 VDC
THD .01% @ 1 kHz
S/N Ratio: >83 dB unweighted
Output Impedance: 1K Ohms
Size: 3.25″ x 2″ x 1.5″
