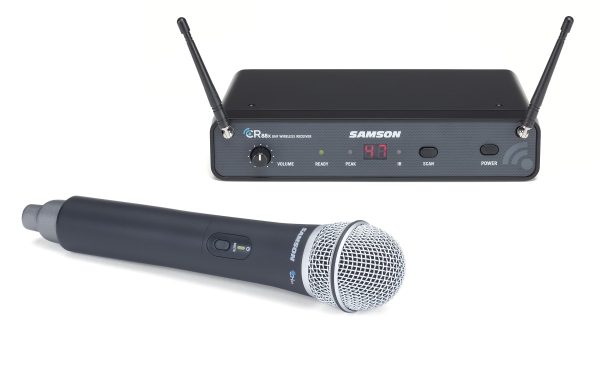

Samson Concert 88x Handheld System (w/ Q7) – F-band
$320.00
- Description
Description
The Concert 88x Handheld wireless system is the perfect solution for singers, educators, and presenters who demand professional-grade audio and ease of use. The one-touch scan feature quickly analyzes and selects the clearest of the 100 available channels, while the true-diversity design and tone key circuitry provide reliable wireless performance.
Pro Performance, Simple Setup
Simplicity and performance are at the heart of the Concert 88x wireless systems. One-touch scanning analyzes all available channels and selects the clearest channel for your performance space. An infrared signal then locks the transmitter and receiver together on the selected channel. With 100 frequencies and a wide 25 MHz bandwidth, there are plenty of channels available for your event/application.
Sound Secure
The CH88 handheld transmitter features the Samson Q7 dynamic microphone capsule. This microphone offers extended dynamic range and excellent transient response, and the supercardioid pickup pattern provides excellent off-axis rejection, minimizing ambient noise and reducing feedback. Enjoy up to eight hours of continuous operation with a pair of AA batteries.
Freedom to Roam the Stage
True-diversity design minimizes dropouts for loud, clear wireless reception up to 300 feet. Tone key and auto-mute circuitry ensures that only the audio signal from the CH88 beltpack transmitter reaches the receiver, and automatically mutes the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.
Making Connections
The rear panel provides both balanced (XLR) and unbalanced (1/4″) connections to an amplifier, sound system, or recording console. The half-rack format and included rackmount kit allow single or multiple CR88x receivers to be installed in a portable audio rack or fixed location.
Features/Specs:
Concert 88x Handheld System
- High-performance professional UHF wireless system
- 100 operating channels across 25 MHz bandwidth
- Up to 8 systems can be used simultaneously per frequency band (region dependent)
- 300′ operating range (line-of-sight)
- Rackmount kit included
CH88 Handheld Transmitter
- Q7 dynamic microphone capsule
- Adjustable input gain
- Silent mute button
- Power/Mute status indicator
- Up to eight hours of continuous use from two AA batteries
CR88x Wireless Receiver
- One-touch automatic frequency scan finds the best operating channel
- Two digit LED display
- Infrared link locks the receiver and transmitter to the same channel
- True diversity design minimizes dropouts
- Tone key and auto mute prevents unwanted noise when transmitter is off or out of range
- Balanced XLR and unbalanced 1/4″ outputs
Specifications
| Working Range | 300′ (100m) line of sight |
|---|---|
| Audio Frequency Response | 50 Hz – 15 kHz |
| T.H.D. (Overall) | <1% (@AF 1 kHz, RF 46 dBu) |
| Dynamic Range | >100 dB A-weighted |
| Signal to Noise | >90 dB |
| Tone Key Frequency | 35 kHz |
| Microphone Element | Dynamic |
|---|---|
| Input Gain Range | 28 dB |
| RF Power | 10 mW EIRP |
| Power Requirements | Two AA (LR6) alkaline batteries |
| Battery Life | 8 hours |
| Dimensions | 10.23″ x ø2.1″ / 260mm x ø54mm |
| Weight | 0.48lb / 218g |
| Audio Output Level – Unbalanced | +14 dBu |
|---|---|
| Audio Output Level – Balanced | +9 dBu |
| Audio Output Impedance – Unbalanced | 810 Ohms |
| Audio Output Impedance – Balanced | 240 Ohms |
| Sensitivity | -100 dBm / 30 dB sinad |
| Image Rejection | >50 dB |
| Operating Voltage | 15 VDC 200mA |
| Dimensions (LxWxH) | 8.25″ x 4.9″ x 1.75″ / 210mm x 125mm x 44mm |
| Weight | 0.88lb / 400g |
