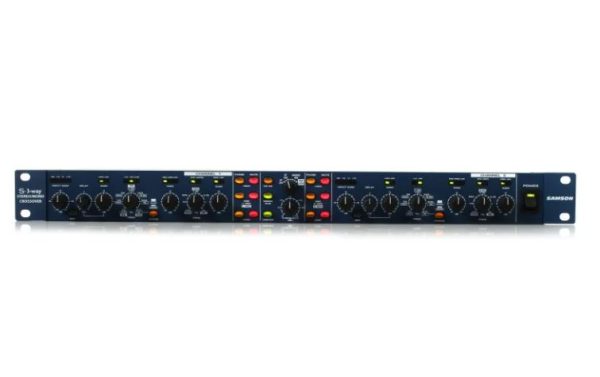

Samson S-3 WAY Stereo/Mono Crossover

Description

Beyond Your Ordinary Crossover

The Samson S 3-Way is a versatile 2-way, 3-way and 4-way crossover with a difference. First, it’s a perfect 2-way or 3-way stereo crossover. But its mode is also switchable for use as a 4-way mono crossover!



Samson S 3-Way Crossover at a Glance:

  • Input gain of up to 12dB with LED metering and Peak indicator
  • Sweepable crossover points for fine-tuning your audio output
  • Delay section to time-align low frequency output

Input gain of up to 12dB
The input gain features +/-12dB range with LED metering and Peak indicators. S 3-way features Low, Mid and High Frequency outputs with +/-6dB of gain control. Each output incorporates a Mute switch for monitoring the individual frequency bands and a phase switch to invert the phase of the output.

Sweepable crossover points for fine-tuning your audio output
The first crossover point is sweepable in three ranges: from 35Hz to 800Hz, from 350Hz to 8kHz with the 10X-Multiplier switch engaged, or from 16Hz to 400Hz in 4 way low-mode. The second crossover point is sweepable from 175Hz to 4kHz or from 350Hz to 8kHz depending on the setting of the mode switch.

Delay section to time-align low frequency output
The S 3-way also includes a Delay section with up to 2ms of delay to time-align low frequency outputs for improved phase response of any PA system. S 3-way’s global section features a variable threshold Limiter, a CD function (for constant directivity horns) and High Pass Filter.

Samson S 3-Way Crossover Features:

  • Stereo 3-way, Mono 4-way Electronic Crossover
  • Phase Switches Invert the Phase of Individual Outputs
  • Adjustable Low Frequency Delay for Time Aligning Speaker Stacks
  • Mode Indicator LEDs Provide Quick Visual Display of Operating Mode
  • 4 Segment LED Input Meter Allows Easy Gain Adjustment
  • Precision Linkwitz-Riley, 24 dB/Octave filters
  • Output Mute Switches for All Individual Outputs
  • Constant Directivity EQ Smooths the Response of CD Horns Above 3.5 kHz
  • Peak Limiter with Independent Threshold Control and Peak LED
  • High Quality 41 Position Detent Pots and Backlit Switches
  • Three-year Extended Warranty
