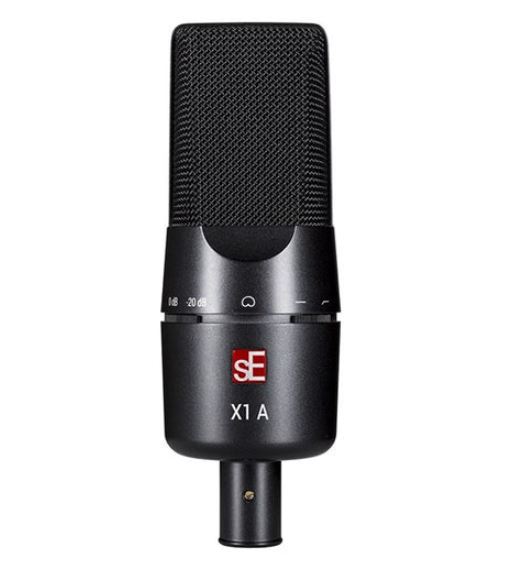

sE Electronics X1 A – Cardioid Condenser Microphone

Description

The X1A Cardioid Condenser with 20 dB Attenuation Pad from sE Electronics is intended for a wide range of studio applications such as recording vocals, drums, acoustic instruments, and more. Thanks to its custom design and carefully selected capsule, it delivers pristine sound quality and an even, well-balanced frequency response. The electronics and the switchable attenuation pad ensure a high dynamic range, with high SPL (Sound Pressure Level) handling capability and extremely low-noise components. The switchable low-cut filter eliminates rumble or footfall noise, and can also compensate for an excess of bass frequencies caused by the proximity effect. This enables the microphone to close-mic many instruments including electric guitar speaker cabinets, brass instruments, and drums.



FEATURES:

All-metal chassis provides efficient rejection of any electrical interference and noise
Integrated windscreen eliminates the need for an external pop filter, and provides an extra layer of safety and security for the all-important capsule
-20 dB pad switch on the left provides extended dynamic range, enabling a wide range of applications and close-mic techniques
On the right, the 100 Hz low-cut switch helps eliminate low-frequency rumble or footfall noise, and compensates for excessive bass with close-mic techniques (proximity effect)
Gold-plated 3-pin XLR connector ensures a loss-free, reliable signal connection

Specifications:

Capsule Type: 2/3″ Permanently-Biased Condenser

Directional Pattern: Cardioid

Frequency range: 20 Hz – 20 kHz

Impedance: <50 Ohms

Sensitivity: 20 mV/Pa (-34 dB)

Max SPL: 130 / 150 dB (0 / 20 dB pad, (0.5% THD @ 1kHz)

Signal to Noise Ratio: 78 dB(A)

Equivalent Noise Level: 16 dB(A)

Dynamic Range: 114 / 134 dB (0 / 20 dB pad)

Low Cut Filter: 100 Hz, 6 dB/oct, switchable

Attenuation Pad: 20 dB, switchable

Connectivity: 3-pin male XLR

Power requirement: 48V phantom according to IEC 61938

Recommended Load Impedance: >1K Ohms

Current Consumption: 4.0 mA

Diameter: 58 mm (2.28 in.)  x  Length: 169 mm (6.65 in.)

Weight: 390 g

Additional information

colors	Black, White, Red
