Sennheiser XSW1-ME3 Wireless Headset System

Description

Hands-free performance. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 HEADMIC SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound that involves dancing and singing all at the same time.

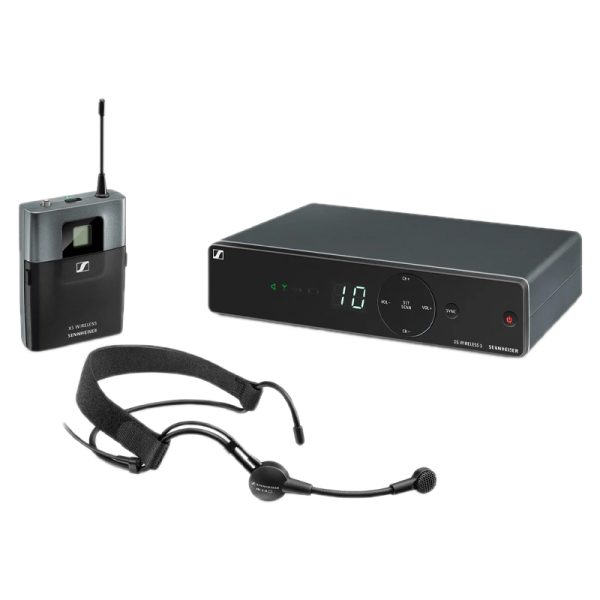

The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a compact bodypack transmitter and a lightweight headset microphone.







• Lightweight headmic and compact bodypack transmitter
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

Receivers



• Dimensions

  approx. 200 x 42 x 127 mm

• Weight

  approx. 340g

• Power supply

  12 V DC nom. / 300 mA

• AF frequency response

  50 to 16,000 Hz (–3 dB)

Transmitter



• Dimensions

  approx. 71 x 96 x 28 mm

• Weight

  approx. 95g

• Operating time

  Approx. 10 hrs

• Power supply

  2 AA size batteries, 1.5 V

• Adjustment Range Transmitter

  0 to -30 dB, adjustable in 10 dB steps

• Microphone

  Condenser

• THD, total harmonic distortion

  ≤ 0.9%

• Pick-up pattern

  Cardioid

• Signal-to-noise ratio

  ≥ 103 dBA

• RF output power

  10 mW

• Switching bandwidth

  up to 24 MHz

• Modulation

  Wideband FM

• Output voltage

  1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

• Housing

  Rugged ABS housing

• Frequency

  8 frequency banks, each with up to 10 factory-preset channels

• Frequency range

  A: 548-572 MHz, GB: 606-630 MHz

  B: 614-638 MHz

  C: 766-790 MHz

  D: 794-806 MHz

  E: 821-832 MHz, 863-865 MHz

  K: 925-937.5 MHz

• Sensitivity

  < 3 μV at 52 dB(A)rms S/N

• SPL for peak deviation

  150 dB

• Squelch

  adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)

• Synchronization

  2.4 GHz, Low Power OQPSK (only active during synchronization)

• Input sensitivity

  1.5 mV / Pa

• Audio adjustment range

  45 dB, adjustable in 5-dB steps

• Line / Mic level

  20 dB, switchable

• Temperature Range

  Operation: 0°C to +40°C, storage: –20°C to +70°C

• Receiver Principle

  Double superheterodyne

• Diversity principle

  Antenna switching diversity via internal antennas
