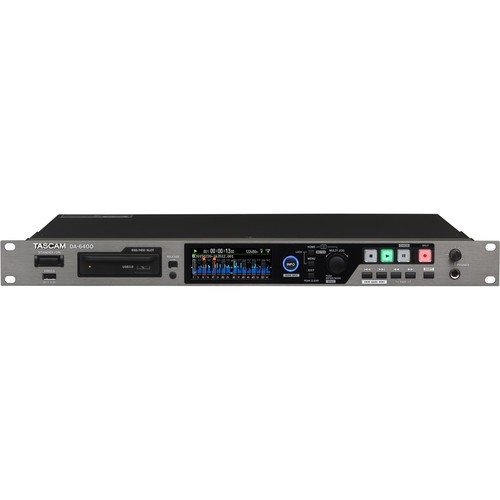

Tascam DA-6400
$5,742.00
- Description
Description
DESCRIPTION
TASCAM’s DA-6400 is an all-new 64-track recorder that records to an internal SSD drive caddy for live and event recording. Professional I/O options like MADI and DANTE make it ideal for live recording, event capture, or as a backup for critical DAW sessions. Available with a single or dual/redundant power supply, the DA-6400 is an unbeatable option for professional remote recording.
Included with the DA-6400 is an AK-CC25 hot-swappable caddy containing a high-performance 240GB TASCAM solid-state drive. The caddy includes a USB 3 jack for stand-alone use – simply hand the drive to the client to offload the BWAV files into their DAW session. The DA-6400 records 64 tracks at 48kHz/24-bit or 32 tracks at 96kHz/24-bit. Included on the rear panel are SMPTE timecode, word clock, RS-422, parallel and Ethernet connections.
I/O options for the DA-6400 include the IF-MA64/EX interface card, with both coaxial and optical MADI connections. This card includes a redundant coaxial connection so that MADI is passed through even if power is lost, making it an ideal backup recorder for DAW sessions. Other I/O options include the lower-cost IF-MA64/BN coaxial MADI card, IF-DA64 Dante card, and IF-AE16 AES/EBU card, with more to come.
No dedicated recorder combines the high performance, flexible operation, and complete reliability of TASCAM’s DA-6400 solid-state 64-track recorder.
FEATURES
- Supports recording/playback of 64 channels at 48kHz/24-bit or 32 channels at 96kHz/24-bit PCM
- The perfect backup recording system for synchronized capture with Pro Tools systems
- 2.5-inch SSD recording media with excellent vibration and environmental resistance as well as maintenance-free operation.(Note: HDD support currently under development)
- Includes TASCAM SSD – designed with custom controller parts and thoroughly tested using DA-6400 units
- Hot swappable AK-CC25 case loads into front-loaded storage bay with USB 3 I/O port for transfer to DAW computer
- AK-CC25 with TASCAM 240GB SSD drive included with unit
- Hi-visibility Color LCD (320×120 pixels)
- BWF support for storing time information with files
- Two I/O slots for optional audio interface cards:
- IF-MA64/EX 64-channel redundant (in/out/thru) MADI optical/coaxial interface card
- IF-MA64/BN 64-channel MADI coaxial interface card
- IF-DA64 64-channel Dante interface card
- IF-AE16 16-channel AES/EBU interface card
- SMPTE LTC timecode input and output for location synchronization
- Firmware upload over USB port
- Parallel remote control input
- RS-422 serial remote control (9-pin serial protocol compliant)
- Gigabit LAN (1000BASE-T Ethernet) for file transfer, remote control and monitoring over a network
- SNTP server support for automatic adjustment of the internal clock over a network
- Video reference (NTSC/PAL blackburst signals and HDTV Tri-level signals) and word clock input and output/thru
- EIA 1U rackmount size
- IEC 3-pin inlet
- iPad and computer applications for remote control
- AC power redundancy built in (DA-6400dp only)
TASCAM SSD features
- 240GB 2.5-inch serial ATA SSD
- With cooperation with parts manufacturers, TASCAM uses a specific control IC for stable, reliable operation
- SSD operation has been tested with the DA-6400
- One included with each DA-6400/DA-6400dp; additional drives can be purchased separately
- Total recording time: 7h12m@48kHz/24-bits, 64 channels
AK-CC25 (DA-6400 series SSD storage case) features
- 2.5-inch serial ATA SSD can be installed(Note: HDD support currently under development)
- USB 3.0 interface supports high-speed data transfer
- Data transfer possible when loaded in a DA-6400 bay and when connected by USB to a computer as an external drive
- LED disk access indicator
- One included with each DA-6400/DA-6400dp; additional cases can be purchased separately
This product includes software developed by Christos Zoulas.
This product includes software developed by Winning Strategies, Inc.
This product includes software developed by WIDE Project and its contributors.
SPECIFICATIONS
| Recording media | SSD
Note: HDD support also planned in addition to the SSD. |
| File system | FAT32 |
| File formats | BWF(.wav) |
| Number of channels | 64(1xFs), 32(2xFs) |
| Sampling frequencies | 44.1k/48k/88.2k/96kHz |
| Quantization bit rate | 16bit/24bit |
| Clock reference | INTERNAL, WORD IN, VIDEO IN |
| Timecode frame | 23.976 / 24 / 25 / 29.97DF / 29.97NDF / 30DF / 30NDF |
| TIME CODE IN | |
| Connector | BNC |
| Signal voltage amplitude | 0.5V to 5Vp-p |
| Input impedance | 10kΩ |
| Format | SMPTE 12M-1999 compliant |
| TIME CODE OUT | |
| Connector | BNC |
| Signal voltage amplitude | 2Vp-p |
| Output impedance | 600Ω |
| Format | SMPTE 12M-1999 compliant |
| WORD/VIDEO IN | |
| Connector | BNC |
| Input voltage amplitude (WORD) | 0.5V to 5Vp-p TTL equivalent |
| Signal voltage amplitude (VIDEO) | 1Vp-p |
| Input impedance | 75Ω +/-10% |
| Input frequency (WORD) | 48kHz |
| Input signal (VIDEO) | 23.976/24/25/29.97/30 Frame (NTSC/PAL Black burst, HDTV Tri-Level) |
| WORD/VIDEO THRU/OUT | |
| Connector | BNC |
| Output voltage amplitude | 5V TTL equivalent |
| Output frequency (WORD) | 48kHz |
| ETHERNET | |
| Connector | RJ-45 |
| Protocol | 100BASE-TX, 1000BASE-T |
| RS-422 | |
| Connector | D-sub 9 pin (female, inch-standard) |
| PARALLEL | |
| Connector | D-sub 15 pin (female, inch-standard) |
| USB | |
| Connector | USB2.0 A-type |
| Protocol | USB 2.0 HIGH SPEED(480Mbps) |
| PHONES | |
| Connector | 6.3mm(1/4′) standard stereo jack |
| Maximum output level | 45mW+45mW or higher |
| Power | AC100V-240V, 50/60Hz
*DA-6400dp has 2 power supply inlets |
| Power consumption | 21W (At the time of IF-MA64/EX use) |
| Dimensions | 482.6(W)×44.7(H)×304.8(D)mm |
| Weight | |
| DA-6400 | 3.9kg |
| DA-6400dp | 4.0kg |
| Operating temperature | 0 to +40˚C |
| Standard accessories | TASCAM SSD, SSD media case, Power cable×1 (DA-6400), Power cable×2 (DA-6400dp), USB cable, Rack mount screw kit, Security screw kit, Owner’s manual (with warranty) |
