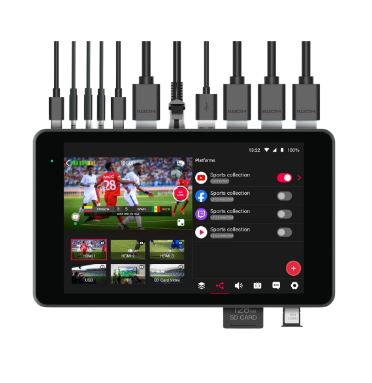

YoloLiv YoloBox Pro

Description

Brighter Displays

YoloLiv YoloBox Pro Live Stream Studio features a larger and brighter display, boasting a brightness of up to 400 nits. Additionally, it offers support for Chroma Keyer functionality. With YoloLiv YoloBox Pro, users gain access to the professional features and processing power necessary for even the most demanding live broadcasts.

Compact and support upto 8 Sources

The 8-inch YoloBox Pro, weighing 750g, offers versatile connectivity options with 3 HDMI inputs, 1 HDMI output, and 1 full-featured USBC port. Capable of switching between up to 8 sources, it accommodates up to four actual local cameras. Additionally, it allows for the integration of other sources, such as pre-recorded videos, which can be either downloaded from the internet or stored on an internal memory chip.

The H.264 codec is supported by the Pro in streams of 540p, 720p, and 1080p60 at your choosing, as well as input resolutions of 720p and 1080i/p. With that you can locally show your stream on an HDMI device via HDMI output.

*USB Webcam Out coming soon in a future firmware update

Touchscreen Control

The Yololiv YoloBox Pro provides you with a large touchscreen interface for easy streaming and control.

The YoloBox Pro features a wide LCD touchscreen interface for convenient streaming and control, displaying the streaming image as well as the input streams; the LCD display also displays the control interface, allowing you to switch information sources with a single touch. There is a separate headphone audio out as well as a line-level audio input. Using the integrated SD card port, you can easily record your stream in the MP4 format to an optional SD card with a maximum capacity of 128 GB. You can connect the synthesizer to the line-in and the microphone to the mic-in to record music.

Functions

Equipped with a multitude of picture-in-picture templates and graphic layers, the device seamlessly transitions into a switcher. Additionally, it boasts a built-in encoder, allowing for live streaming, and offers optional SD card recording capabilities.

Overlays

• You can brand your live stream by adding logos/watermarks/rolling captions
• Customized PiP options, including Interview mode, allow you to bring a unique look and feel to your stream
• Engage with your audience in real-time via feature comment overlays
• The customizable scoreboard feature displays a real-time-controlled scoreboard for professional-looking results
• Built-in lower-thirds templates can be edited or you can add your own

Simultaneous Streaming

YoloBox Pro will first push your feed to the YoloLIV platform, from where it automatically forwards your feed to a maximum of 3 destinations simultaneously.

Streaming Platforms

Major streaming platforms such as Facebook Live, YouTube, and Twitch are directly integrated, you can simply log in to your social account and stream.

Internet

You have multiple options for internet connectivity, including the integrated RJ45 (Ethernet) port, Wi-Fi, and the possibility to utilize cell service by adding an optional SIM card. Additionally, you can seamlessly integrate pre-recorded videos from an SD media card for various segments such as intros, countdowns, B-rolls, or special segments. Moreover, the YoloBox Pro enables you to load PDF files directly as a local source.

Yolobox Pro’s Battery Life

Note: Our Yololiv Yolobox Pro device is registered and approved by Singapore IMDA for use in Singapore .

Besides being an Encoder, recorder, and Live Video switcher, Yolobox Pro can now be doubled as Video Monitor



Specs:

Display	8-inch LCD
Brightness	400 nits
HDMI Inputs	3
HDCP Compliant	Yes
USBC	One for Charging, Another full-featured USBC
Audio Input	Audio In & Mic In
Mixing Audio	Yes
CPU	Qualcomm 660
