Description

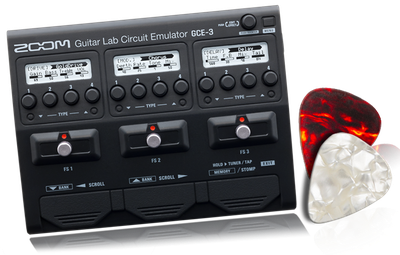

The ZOOM GCE-3 is a compact USB audio interface that puts ZOOM Guitar Lab’s endless collection of guitar effects, amps and cabinets at your fingertips whenever and wherever inspiration strikes.
Key features
- Instantly access dozens of high-quality effects, including distortion, overdrive, EQ, compression, delay, reverb, flanger, phaser and chorus
- Free download of ZOOM Guitar Lab Mac/Windows software for creating, editing and managing patches
- USB-C port for connection to computer
- Built-In DSP processing for circuit emulation of G5n, G3n, G3Xn, B3n, G1 FOUR, G1X FOUR, B1 FOUR, B1X FOUR
- Input jack accepts standard guitar cable
- Auxiliary stereo input jack for connection of smartphones and music players
- Stereo headphone output with volume control
Specs
| SAMPLING FREQUENCY: |
44.1 kHz |
| A/D CONVERSION: |
24-bit 128× oversampling |
| D/A CONVERSION : |
24-bit 128× oversampling |
| SIGNAL PROCESSING: |
32-bit |
Inputs
| INPUT : |
Standard mono phone jack Rated input level: −20 dBu Input impedance (line): 470 kΩ |
| AUX IN: |
Stereo mini jack Rated input level: −10 dBu Input impedance (line): 1 kΩ |
|
|
OUTPUT
| PHONES : |
Stereo mini jack |
|
Maximum output level: |
|
Headphones 15 mW + 15 mW (typ. 32Ω load) |
|
|
| INPUT S/N : |
120 dB (typ) |
| NOISE FLOOR (RESIDUAL NOISE): |
−96 dBu (typ) |
| USB : |
Connector: USB Type-C | USB 2.0 |
| POWER : |
USB bus power (Type-C)/5V DC power supply (Micro-B) |
| EXTERNAL DIMENSIONS : |
80 mm (D) × 106 mm (W) × 29 mm (H) |
| WEIGHT : |
90 g |
|
Note: 0 dBu = 0.775 V |
GCE-3 SYSTEM REQUIREMENTS
| WINDOWS: |
OS： Windows® 8.1 / 10 / 11 (32bit/64bit) CPU: Intel® Core i3 or faster* USB: USB 3.0/USB 2.0** * Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD. ** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards. |
| MAC: |
OS： Mac® OS X 10.11 ~ macOS 13 CPU: Intel® Core i3 or faster USB: USB 3.0/USB 2.0* * Operation is not guaranteed when used with USB hubs or expansion cards. |
