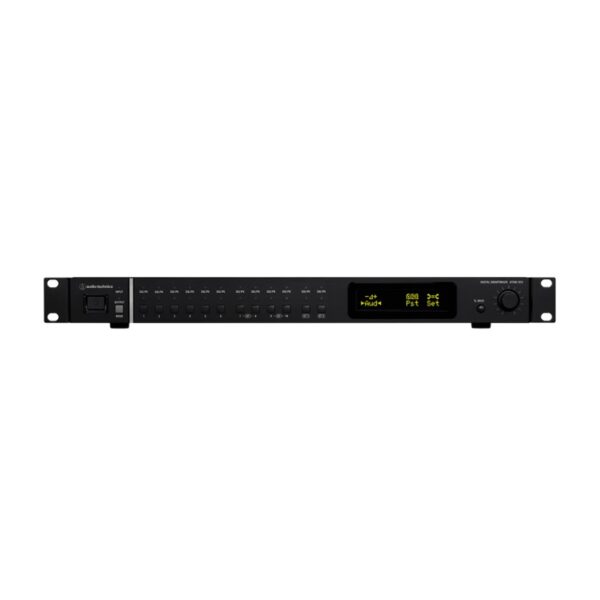

Audio Technica ATDM-1012 10-in/8-out Digital Smart Mixer DSP

Description

Audio-Technica ATDM-1012 10-in/8-out Digital Smart Mixer DSP

The Audio-Technica ATDM-1012 Digital SmartMixer is a highly versatile DSP matrix mixer designed for professional installed audio environments requiring intelligent mixing, zone control, and exceptional speech clarity. Ideal for corporate meeting rooms, hospitality venues, education facilities, courtrooms, houses of worship, and conferencing systems, it delivers reliable performance with advanced processing in a compact 1U rack format.

This SmartMixer features a powerful 14-input / 12-bus full-matrix architecture, including ten high-quality mic/line inputs with discrete preamps, two stereo line inputs, USB audio I/O, eight balanced outputs, and two unbalanced stereo outputs. The system supports expansion via Audio-Technica LINK connections, enabling cascading of multiple ATDM units for larger installations.

Each input channel includes professional signal processing tools such as phase inversion, low-cut filtering, and a four-band parametric EQ for precise sound shaping. Signals can be routed to any of the twelve buses with independent level control, allowing flexible zone distribution and mix-minus operation for complex AV setups.

The SmartMixer technology provides four configurable mixing groups operating in gain-sharing or gating modes, ensuring consistent levels and excellent intelligibility when multiple microphones are active. Advanced DSP processing includes Acoustic Echo Cancellation (AEC), Noise Cancelling (NC), compressors/de-essers, and feedback suppression processors that can be freely assigned to inputs or outputs to maintain optimal audio quality.

Setup and control are straightforward via the front panel or the Web Remote Manager software, which allows full configuration, monitoring, and system management from a computer. Remote access over IP through a standard web browser further enhances flexibility for permanent installations.

With powerful processing, scalable architecture, and reliable operation, the ATDM-1012 is an ideal centerpiece for professional installed sound systems requiring intelligent automation and precise audio control.

Key Features

14-input / 12-bus digital matrix SmartMixer
10 high-quality mic/line inputs with discrete preamps
USB audio I/O for conferencing and recording
Gain-sharing or gating smart mixing groups
Acoustic Echo Cancellation (AEC) and Noise Cancelling (NC)
Four-band parametric EQ on each input channel
Flexible routing with independent bus control
Audio-Technica LINK support for cascading up to 8 devices
Integration with ES954 Hanging Microphone Arrays
Remote control via Web Remote Manager software
IP browser access for remote management
Compact 1U rack-mount chassis

Specification
