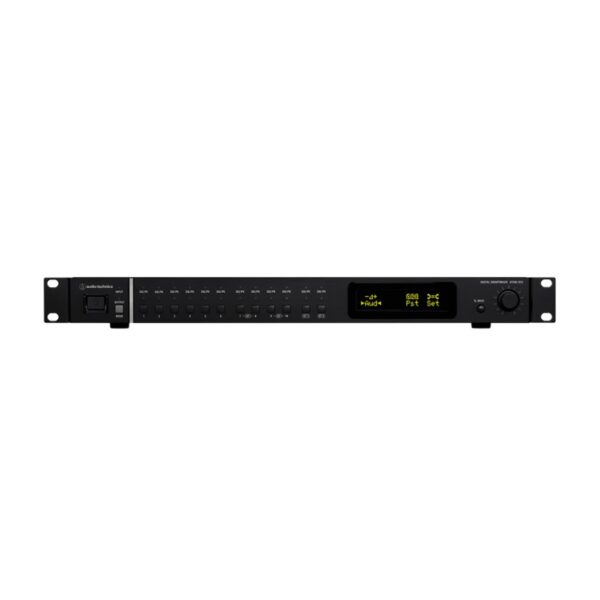

Audio Technica ATDM-1012DAN 10-in/8-out Digital Smart Mixer DSP with Dante
$3,689.00
• Audio-Technica ATDM-1012DAN Dante digital SmartMixer DSP matrix mixer.
• 10 mic/line inputs, 14 total inputs, 8 balanced outputs, 12 buses.
• Built-in AEC, noise cancelling, EQ, compression, feedback suppression.
• Gain-sharing or gating smart mixing for conference systems.
• USB audio I/O and Dante networking for AV installations.
• Ideal for boardrooms, classrooms, hospitality, and courtrooms.
- Description
Description
Audio-Technica ATDM-1012DAN 10-in/8-out Digital Smart Mixer DSP with Dante
The Audio-Technica ATDM-1012DAN Digital SmartMixer is a powerful, network-ready DSP matrix mixer designed for professional installed audio systems where intelligent mixing, zone control, and crystal-clear speech are critical. Perfect for corporate boardrooms, hospitality venues, education facilities, courtrooms, houses of worship, and conference spaces, this SmartMixer delivers reliable performance with advanced processing capabilities.
Built around a 14-input / 12-bus full-matrix architecture, the ATDM-1012DAN provides ten high-quality mic/line inputs with discrete amplifiers, two stereo line inputs, USB audio I/O, eight balanced outputs, and two unbalanced stereo outputs. The Dante-enabled version supports additional digital inputs via Dante or Audio-Technica LINK connections, allowing seamless integration into modern networked AV systems.
Each input channel includes professional signal processing tools such as phase inversion, low-cut filtering, and a four-band parametric EQ for precise audio shaping. Signals can be routed to any of the twelve buses with independent volume control, enabling flexible zone-based audio distribution and mix-minus configurations.
The SmartMixer technology provides four configurable mixing groups operating in either gain-sharing or gating modes, ensuring consistent levels and excellent speech intelligibility when multiple microphones are active. Advanced DSP features include Acoustic Echo Cancellation (AEC), Noise Cancelling (NC), compressors/de-essers, and feedback suppression processors that can be assigned to inputs or outputs to maintain optimal clarity.
Configuration and operation are simple via the front panel or the intuitive Web Remote Manager software, which enables full system setup, monitoring, and control from a computer. The mixer can also be accessed remotely over IP through a standard web browser, offering convenient management for large installations.
With robust networking, flexible routing, intelligent automation, and a compact 1U rack-mount design, the ATDM-1012DAN is an ideal solution for professional installations requiring scalable, high-performance audio control.
Key Features
14-input / 12-bus digital matrix SmartMixer
10 high-quality mic/line inputs with discrete amplifiers
Dante networking for digital audio distribution
USB audio I/O for conferencing and recording
Gain-sharing or gating smart mixing groups
Acoustic Echo Cancellation (AEC) and Noise Cancelling (NC)
Four-band parametric EQ on every input channel
Flexible matrix routing with independent bus control
Audio-Technica LINK support for cascading devices
Integration with ES954 Hanging Microphone Arrays
Remote control via Web Remote Manager software
IP browser access for remote management
Compact 1U rack-mount chassis
Specification
| General | |
| Model | ATDM-1012DAN |
| Product Type | Digital Smart Mixer DSP with Dante |
| Form Factor | 1U Rack Mount (19″) |
| Inputs | |
| Total Inputs | 14 |
| Mic/Line Inputs | 10 (Euroblock 3-pin) |
| Stereo Line Inputs | 2 (Euroblock 3-pin) |
| Additional Digital Inputs | Up to 10 via AT-LINK or Dante |
| Outputs | |
| Balanced Outputs | 8 (Euroblock 3-pin) |
| Unbalanced Outputs | 2 Stereo |
| Matrix & Mixing | |
| Bus Architecture | 12 Buses |
| Mixing Groups | 4 (Gain Sharing or Gating) |
| DSP Processing | |
| EQ | 4-Band Parametric per Input |
| Low-Cut Filter | Yes |
| Phase Inversion | Yes |
| Acoustic Echo Cancellation | Up to 10 Channels |
| Noise Cancelling | Yes |
| Compression / De-essing | 10 Processors |
| Feedback Suppression | 8 Processors |
| Performance | |
| Dynamic Range | 110 dB or higher (A-weighted) |
| S/N Ratio | 90 dB or higher (A-weighted) |
| Maximum Gain | 64 dB |
| Maximum Input Level | MIC: -20 dBu / LINE: +24 dBu / ST: +20 dBV |
| Maximum Output Level | Balanced: +24 dBu / +20 dBV / +10 dBV Unbalanced: +20 dBV / +10 dBV / -13 dBV |
| Connectivity | |
| USB Audio | USB Type-B, Stereo In/Out (24-bit) |
| Dante Networking | Yes |
| Network Ports | RJ-45 (Primary/Secondary) |
| LINK/CHAIN Ports | RJ-45 x4 |
| Power & Physical | |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Operating Temperature | 0–40 °C |
| Dimensions (W×D×H) | 482.6 × 324.3 × 44 mm |
| Weight | 3.6 kg |
