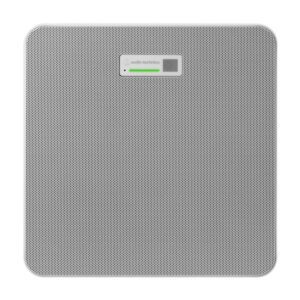

Audio Technica ATND1061 LK Beamforming Ceiling Microphone with AT Link
$3,159.00
- Beamforming ceiling microphone for conference and meeting rooms.
- Up to 32 configurable pickup zones with automatic speaker tracking.
- Built-in DSP with echo cancellation and noise reduction.
- PoE-powered design for simplified installation.
- Suitable for small to large professional conferencing spaces.
- Description
Description
Audio-Technica ATND1061 LK Beamforming Ceiling Microphone with A-T Link is a professional ceiling microphone array designed for conference rooms, boardrooms, classrooms, and large meeting spaces. This beamforming ceiling microphone delivers clear, natural speech capture from every participant while minimizing background noise, making it ideal for modern video conferencing and unified communication environments.
The ATND1061 LK uses advanced beamforming technology with up to 32 configurable pickup zones across six output channels, allowing precise coverage of both priority participants and general seating areas. The microphone automatically tracks active speakers within defined coverage zones, ensuring consistent voice pickup even when participants move around the room.
Built-in digital signal processing provides automixing, acoustic echo cancellation, noise reduction, automatic gain control, and equalization without requiring external DSP hardware. Proprietary voice activity detection technology distinguishes speech from environmental sounds such as paper movement or HVAC noise, improving intelligibility for remote participants.
Installation is simple thanks to its compact design, which resembles a wireless access point. The microphone can be flush-mounted or surface-mounted in ceilings, or installed in open architecture spaces using a VESA mount. Included mounting hardware and safety components support professional installations, while PoE power allows operation through a single network cable.
Configuration and management are handled through Audio-Technica’s Digital Microphone Manager software, enabling flexible room setup, exclusion zones, and system optimization. The ATND1061 LK beamforming ceiling microphone is an advanced solution for organizations seeking reliable, high-quality audio coverage for conferencing, collaboration, and presentation spaces.
Specification
• Product Type: Beamforming ceiling array microphone
• Beam Width: 90° orthogonal beams
• Pickup Zones: Up to 32 user-defined zones (Coverage & Priority)
• Output Channels: 6 channels
• Frequency Response (Mic): 60 Hz – 18,000 Hz
• Maximum SPL: 102 dB SPL
• Sensitivity: −8 dBFS (1 kHz, 94 dB SPL)
• Dynamic Range: 89 dB (A-weighted)
• Signal-to-Noise Ratio: 61.5 dB (A-weighted)
• Self Noise: 25 dB SPL (A-weighted)
• Analog Audio Frequency Response: 20 Hz – 20 kHz (+1.0 / −2.0 dB)
• Analog Dynamic Range: 100 dB (A-weighted)
• Analog Signal-to-Noise Ratio: 80 dB (A-weighted)
• DSP Functions: Automix, AEC, noise reduction, AGC, 4-band EQ
• Voice Detection: Proprietary VAD technology
• Power Requirement: PoE (IEEE 802.3af Class 0)
• Power Consumption: Max 7 W
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 25% – 85% (non-condensing)
• Dimensions: 227.5 × 227.5 × 30 mm
• Weight: 1250 g
• Network Interface: RJ45 (A-T Link)
• Analog I/O: Euroblock connectors
• Digital Audio: 48 kHz sampling, 24-bit depth
