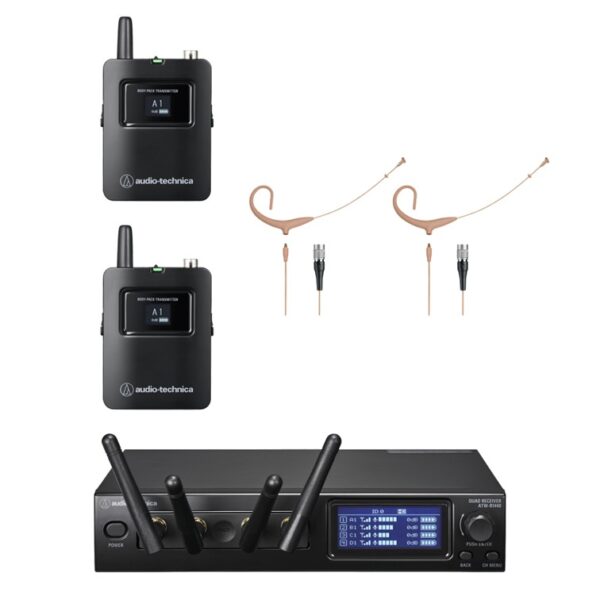

Audio Technica ATW-1421/BP894xCw-TH System 20 PRO Dual Wireless Headworn Mic System

Description

Audio-Technica System 20 PRO 2.4 GHz Digital Wireless Microphone System

The Audio-Technica System 20 PRO delivers cutting-edge performance and exceptional convenience for professional 2.4 GHz wireless microphone applications. This self-managing, plug-and-play digital system supports up to 20 simultaneous channels while maintaining dependable, high-quality audio regardless of the installation environment. By eliminating complex setup processes such as frequency coordination, intermodulation calculations, and remote antenna cabling, it enables rapid deployment for live events, corporate AV, education, and installed sound systems.

At the core of the system is the ATW-R1440 receiver, capable of supporting up to four transmitters per channel for highly flexible microphone configurations. Receiver units can remain docked in the half-rack chassis or be mounted remotely up to 328 feet (100 meters) away via Ethernet cable, allowing clean and adaptable installations across large venues or multi-room setups. Up to five chassis can be linked using the included RJ12 cable, creating a stable multichannel system with up to 20 channels operating simultaneously.

The system provides selectable operating modes to suit different requirements: Standard mode (up to 10 channels) to minimize latency, or HD mode (up to 20 channels) to maximize channel capacity. Configuration and monitoring are streamlined through Audio-Technica’s Wireless Manager software, which enables centralized control of multiple UHF, 2.4 GHz, and DECT wireless systems from a single interface.

Built-in AES128 encryption ensures secure and reliable wireless transmission. Transmitters are paired and ready for immediate use out of the box, providing all-day operation on a full charge. With OLED displays, auto-lock protection, and flexible output options, the System 20 PRO offers a dependable solution for demanding professional environments.

---

Key Features

• Digital 24-bit / 48 kHz wireless operation for professional sound clarity and stability
• Plug-and-play 2.4 GHz operation completely free from TV interference
• Select Standard mode (10 channels) for low latency or HD mode (20 channels) for maximum capacity
• Receiver units can be docked in the chassis or mounted remotely up to 328 ft (100 m) via Ethernet
• Link up to five chassis simultaneously using the included RJ12 cable
• Each receiver channel supports pairing with up to four transmitters
• System ID display shows RF signal level, system ID, battery level, and link status
• Flexible rack mounting with short and long rack ears and joining plate capability
• Centralized configuration via Wireless Manager software
• Auto-lock function prevents unintended operation during use
• AES128 encryption ensures secure wireless transmission
• Syslog protocol compatibility for network monitoring environments
• Save and manage system settings as projects in Wireless Manager
• OLED displays on transmitters and receivers for clear status information
• Water- and sweat-resistant cW-style connector on bodypack transmitters
• Compatible with ATW-CHG3 series charging docks for NiMH batteries
• Mixed output support for installations with limited input channels

---

Specification

Wireless System
Operating Band	2.4 GHz
Audio Resolution	24-bit / 48 kHz digital
Operating Modes	Standard Mode (10 channels), HD Mode (20 channels)
Maximum Channels	Up to 20 channels (linked chassis)
Encryption	AES128
Receiver
Receiver Model	ATW-R1440
Transmitters per Channel	Up to four transmitters
Mounting Options	Docked in chassis or remote mounted
Remote Mount Distance	Up to 328 ft (100 m) via Ethernet
Chassis Linking	Up to five chassis via RJ12 cable
Status Display	System ID display showing RF level, system ID, battery level, and link status
Display Type	OLED
Software & Control
Management Software	Wireless Manager compatible
Multi-System Control	Supports UHF, 2.4 GHz, and DECT systems
Project Management	Configure, monitor, and save settings as projects
Protocol Support	Syslog compatible
Auto-Lock Function	Prevents unintended operation
Transmitter & Power
Pairing	Paired and ready out of the box
Battery Operation	All-day operation on full charge
Connector (Bodypack)	Water- and sweat-resistant cW-style locking 4-pin connector
Charging Compatibility	ATW-CHG3 / ATW-CHG3a / ATW-CHG3N / ATW-CHG3Na charging docks (NiMH)
Display	OLED
Output
Output Support	Mixed output for limited input environments
