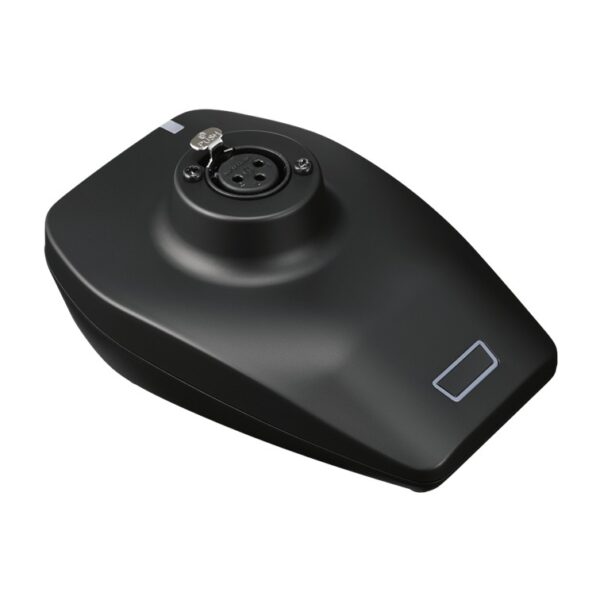

Audio Technica ATW-T1407 System 20 PRO Wireless Table Base Transmitte

Description

Audio-Technica System 20 PRO 2.4 GHz Digital Wireless Microphone System

The Audio-Technica System 20 PRO pushes 2.4 GHz digital wireless microphone technology to new levels of performance, flexibility, and ease of use. Designed as a self-managing, plug-and-play system, it supports up to 20 simultaneous channels while delivering consistent, high-quality audio in virtually any installation environment. By removing the need for frequency coordination, intermodulation calculations, and external antenna cabling, the system allows rapid deployment with minimal setup complexity.

At the center of the system is the ATW-R1440 receiver, which can support up to four transmitters per channel for flexible multi-user operation. Receivers can remain docked in a half-rack chassis or be mounted remotely up to 328 ft (100 m) away using Ethernet cable, enabling clean installations across large venues or distributed setups. Up to five chassis can be linked via the included RJ12 cable, allowing stable multichannel operation with as many as 20 channels simultaneously.

The system provides selectable operating modes to suit different requirements. Standard mode supports up to 10 channels with minimal latency, while HD mode enables up to 20 channels for larger deployments. Configuration, monitoring, and control are streamlined using Audio-Technica’s Wireless Manager software, capable of managing multiple UHF, 2.4 GHz, and DECT wireless systems from a single interface.

Built-in AES128 encryption ensures secure wireless transmission, while transmitters arrive pre-paired and ready for immediate use with all-day battery operation. OLED displays, auto-lock protection, and flexible output options make the System 20 PRO ideal for corporate AV, education, live production, houses of worship, and installed sound applications.

Key Features

Digital 24-bit / 48 kHz wireless operation for high-fidelity audio performance
Plug-and-play 2.4 GHz operation free from TV broadcast interference
Selectable Standard mode (10 channels) or HD mode (20 channels)
Remote receiver mounting up to 328 ft (100 m) via Ethernet cable
Link up to five chassis for large multichannel deployments
Each receiver channel supports pairing with up to four transmitters
System ID display shows RF signal level, battery status, and link information
Flexible rack mounting with short and long rack ears and joining plate capability
Centralized control using Wireless Manager software
Auto-lock function prevents unintended system changes
AES128 encryption for secure wireless transmission
Syslog protocol compatibility for network monitoring
Project-based configuration and management through software
OLED displays on transmitters and receivers for clear status viewing
Water- and sweat-resistant cW-style connector on bodypack transmitters
Compatible with ATW-CHG3 series charging docks for NiMH batteries
Mixed output support for installations with limited inputs
