Audio Technica ATW-T5202 5000 Series Handheld Transmitter
$1,239.00
- Professional handheld wireless transmitter for Audio-Technica 5000 Series systems.
- Compatible with interchangeable microphone capsules (sold separately).
- Switchable RF power output for optimized range and battery life.
- Multifunction button allows quick switch to backup frequency.
- Rugged metal body with OLED display for live performance use.
- Description
Description

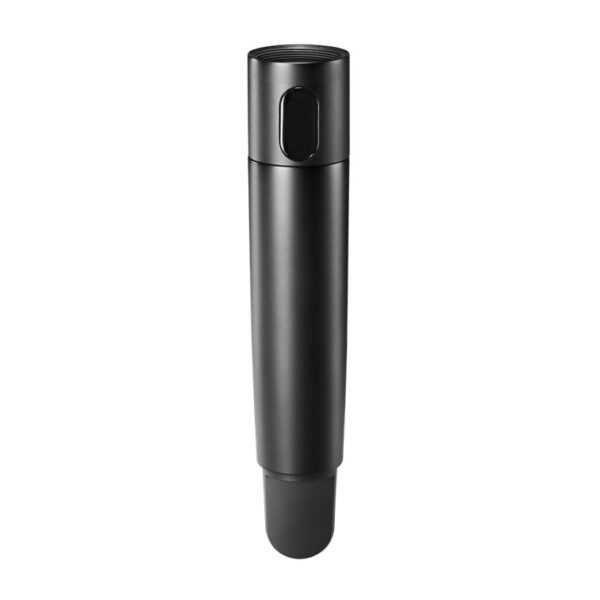

Audio-Technica ATW-T5202 5000 Series Handheld Transmitter is a professional wireless handheld transmitter body designed for use with interchangeable microphone capsules in Audio-Technica’s 5000 Series wireless systems. Supplied as a handle-only unit, this transmitter supports industry-standard thread mounts, allowing compatibility with a range of Audio-Technica interchangeable capsules (sold separately).
Built with a rugged metal construction and ergonomic design, the ATW-T5202 features a highly visible OLED display, programmable functions, and soft-touch controls for reliable operation in demanding live environments. The transmitter includes a multifunction button that allows users to switch to a backup frequency on both transmitter and receiver to minimize interference during performances.
The unit offers switchable RF output power levels (2 mW, 10 mW, and 50 mW) to optimize transmission range and battery life based on operating conditions. A built-in high-pass filter helps reduce low-frequency noise, while compatibility with interchangeable capsules provides flexibility for different vocal applications.
Designed for professional stage, broadcast, and live sound use, the Audio-Technica ATW-T5202 delivers dependable wireless performance and flexible configuration when paired with compatible receivers and microphone capsules.
Key Features
• Handheld wireless transmitter body for Audio-Technica 5000 Series systems
• Compatible with interchangeable microphone capsules (sold separately)
• Industry-standard thread mount supports multiple capsule options
• Multifunction button enables quick switching to backup frequency
• Rugged ergonomic metal body for professional use
• OLED display with programmable features and soft-touch controls
• Switchable RF output power: 2 mW, 10 mW, or 50 mW
• Built-in high-pass filter reduces unwanted low-frequency noise
• Designed for live sound, broadcast, and stage applications
Specification
• Modulation Mode: FM
• Minimum Frequency Step: 25 kHz
• Maximum Deviation: ±40 kHz (THD: 10%)
• Frequency Response: 33 Hz – 16,300 Hz (depends on attached microphone element)
• Operating Range: 100 m (328 ft) open environment
• Total Harmonic Distortion: < 1.0% (at 1 kHz)
• RF Power Output: High: 50 mW; Mid: 10 mW; Low: 2 mW (switchable)
• Battery Type: Two 1.5V AA batteries (not included)
• Battery Life: High: 6.5 hours; Mid: 8 hours; Low: 9.5 hours (alkaline)
• Dimensions: 193 mm long; 37 mm maximum diameter (without capsule)
• Net Weight: 200 g (without capsule or batteries)
