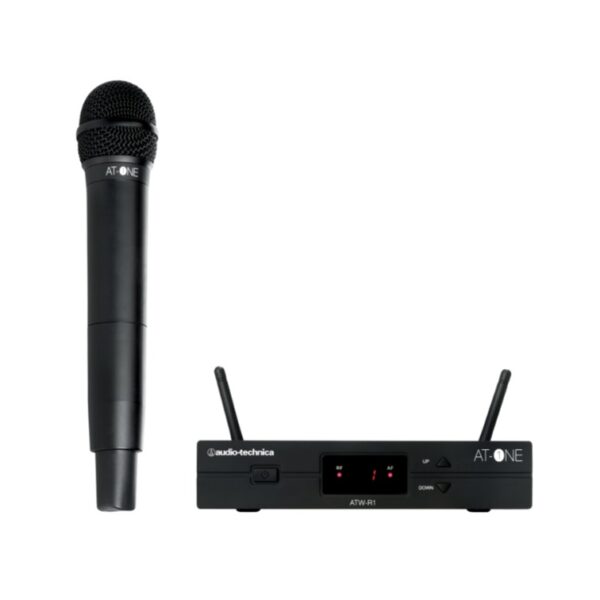

Audio Technica ATW13 AT-ONE Wireless Handheld Microphone System
$349.00
- Entry-level UHF wireless handheld microphone system.
- Includes cardioid condenser handheld transmitter.
- 2 × 4 channel frequency plan for flexible operation.
- Antenna switching diversity for stable signal reception.
- Up to 10 hours battery life using AA batteries.
- Description
Description
Audio-Technica ATW-13 AT-One Wireless Handheld Microphone System is an entry-level UHF wireless solution designed for presentations, karaoke, small events, houses of worship, and general speech applications. Built for simplicity and reliability, the AT-One system offers easy setup and dependable wireless performance at an affordable price.
This configuration includes the ATW-R1 receiver and ATW-T3 handheld transmitter with a cardioid condenser microphone capsule. The cardioid pickup pattern focuses on the user’s voice while reducing background noise and feedback, making it suitable for live speaking and vocal use.
The system operates on a 2 × 4 channel frequency plan, allowing users to select up to four channels within a group for flexible operation. Antenna switching diversity helps maintain a stable signal, while RF and AF indicators provide clear status monitoring during use.
Supplied with a rack-mount kit, detachable antennas, power adapter, and protective carrying case, the AT-One ATW-13 offers a complete wireless handheld solution for users seeking reliable performance with minimal setup complexity.
Key Features
• Entry-level UHF wireless handheld microphone system
• Includes cardioid condenser handheld transmitter
• 2 × 4 channel frequency plan for flexible operation
• Simple setup with intuitive controls
• Antenna switching diversity for stable signal
• RF and AF indicators for monitoring signal and audio levels
• Up to 10 hours battery life using AA batteries
• Rack-mountable receiver for easy installation
• Detachable antennas for flexible placement
• Supplied with protective carrying case and accessories
Specification
• System Type: UHF wireless handheld microphone system
• Operating Frequencies: F-Band: 824–831 MHz; 863–865 MHz
• Number of Channels: 2 × 4 selectable frequencies
• Operating Range: Up to 60 m (typical)
• Frequency Response: 60 Hz – 16 kHz
• Modulation Mode: FM
• Transmitter Type: Handheld
• Microphone Element: Cardioid condenser
• RF Power Output: 10 mW
• Battery Type: Two 1.5 V AA alkaline
• Battery Life: Up to 10 hours
• Transmitter Dimensions: 268 mm long; 52 mm diameter
• Receiver Type: Antenna switching diversity
• Audio Outputs: Balanced XLR; Unbalanced 6.3 mm jack
• Antenna Input: BNC type, 50 Ω with 12 V DC bias
• Receiver Dimensions: 200 × 42 × 122 mm (W × H × D)
• Receiver Weight: 418 g (without accessories)
