Blackmagic DeckLink Mini Recorder 4K
$275.00
• 6G-SDI + HDMI 2.0a capture
• Records up to 2160p30
• Supports HDR & metadata
• Low profile PCIe card
• Includes low-profile bracket
- Description
Description

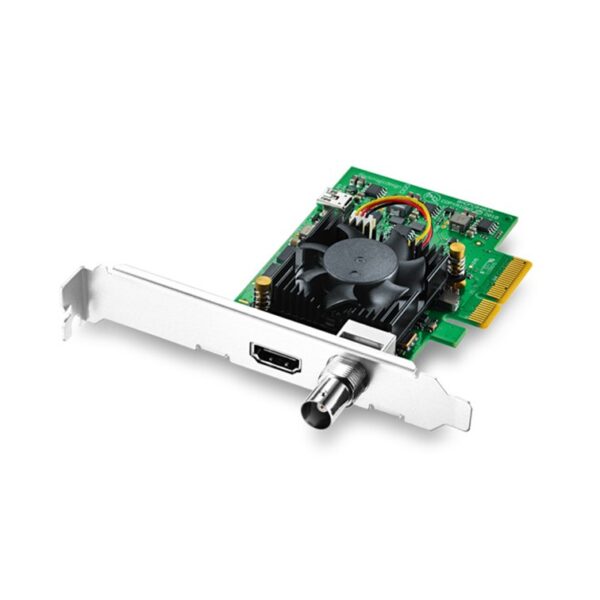

DeckLink Mini Recorder 4K
DeckLink Mini Recorder 4K is a low profile PCI Express capture card featuring 6G-SDI and HDMI 2.0a inputs, allowing you to record all formats up to 2160p30 directly to your computer.
The SDI and HDMI inputs automatically detect and switch between all video formats. It also supports high dynamic range recording and metadata over HDMI, making it suitable for modern broadcast and post-production workflows.
Designed for mobile live capture environments, broadcast trucks, and custom systems, DeckLink Mini Recorder 4K integrates easily into professional setups. Developers can also build custom capture solutions using the Blackmagic Desktop Video SDK for Mac, Windows, and Linux.
The card includes two PCI Express shields for both full height and low profile slots, ensuring compatibility with a wide range of computer cases.
Key Features
• 6G-SDI and HDMI 2.0a capture
• Supports formats up to 2160p30
• HDR recording and HDMI metadata
• Low profile PCIe design
• Includes full height and low profile brackets
Specification
| • Product: DeckLink Mini Recorder 4K |
| • SDI Video Input: 1 x 10-bit SD/HD/Ultra HD switchable |
| • SDI Audio Input: 16 channels embedded |
| • HDMI Video Input: 1 x HDMI 2.0a |
| • HDMI Audio Input: 8 channels embedded |
| • PCIe Interface: PCI Express 4 lane Gen 2 (compatible with x4, x8, x16) |
| • Max Resolution: Up to 2160p30 |
| • HDR Support: Static metadata, HLG, PQ |
| • Video Sampling (SDI): 4:4:4 & 4:2:2 |
| • Video Sampling (HDMI): 4:4:4, 4:2:2 & 4:2:0 |
| • Power Consumption: 8 W |
| • Operating Temperature: 5° to 40°C |
| • OS Support: Mac, Windows, Linux |
