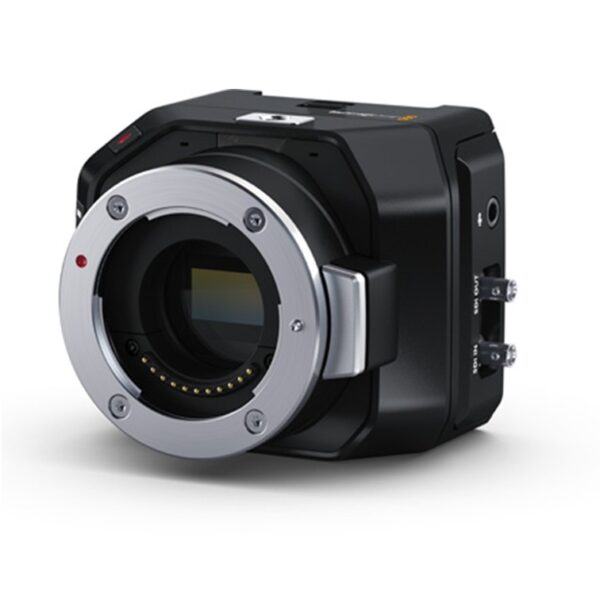

Blackmagic Micro Studio Camera 4K G2

Description

Blackmagic Micro Studio Camera 4K G2

The Blackmagic Micro Studio Camera 4K G2 is a broadcast-quality live production camera in an ultra-compact body designed to fit where larger cameras cannot. Built around a Four Thirds sensor with 13 stops of dynamic range and excellent low-light performance, it delivers stunning Ultra HD images in challenging lighting environments.

Featuring professional 12G-SDI Micro BNC in and out, the camera supports 10-bit uncompressed video up to 2160p60 with embedded audio. When connected to an ATEM switcher, the SDI input enables tally, camera control, color correction control, and lens control (on supported lenses). With an ATEM Mini, the HDMI output provides 1080p60 while still supporting full control features.

The Micro Studio Camera 4K G2 also records cinematic Blackmagic RAW directly to external USB-C drives, making it suitable for both live production and high-end post workflows. Multiple mounting points allow flexible installation in studios, live events, houses of worship, sports venues, and tight rig setups.

Key Features

• Ultra HD 3840 x 2160 up to 60fps
• Four Thirds sensor with 13 stops dynamic range
• 12G-SDI Micro BNC in/out for broadcast workflows
• HDMI output (always HD up to 1080p60)
• Full ATEM switcher control (tally, CCU, lens control on supported lenses)
• Records Blackmagic RAW to external USB-C drives
• Ultra-compact body with multiple mounting points

• Effective Sensor Size: 17.78mm x 10mm (Four Thirds)
• Lens Mount: Active MFT Mount
• Lens Control: Iris, focus, zoom on supported lenses
• Dynamic Range: 13 Stops
• Dual Native ISO: 0dB and 18dB gain
• Sensitivity at 0dB Gain: f11 with 2160p59.94; f12 with 2160p50 at 2,000 lux with 89.9% reflectance
• Signal to Noise Ratio: 63dB for 2160p
• Shooting Resolutions: 3840 x 2160 (Ultra HD) up to 60 fps
• Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps (off-speed up to 60 fps in Ultra HD)
• Focus: Auto focus available with compatible lenses
• Mounting Options: 1 x 1/4″ (top), 3 x 1/4″ (bottom)

• SDI Video Input: 1 x 12G-SDI Micro BNC
• SDI Video Output: 1 x 12G-SDI Micro BNC
• SDI Rates: 3G, 6G, 12G
• HDMI Output: 1 x HDMI Type-A (HD up to 1080p60)
• Analog Audio Input: 1 x 3.5mm stereo (also supports Timecode)
• SDI Audio Output: 2 channels embedded audio
• HDMI Audio Output: 2 channels, 48 kHz, 24-bit
• Computer Interface: 1 x USB-C 3.1 Gen 1 (5Gb/s) for recording and control

• Microphone: Integrated stereo microphone
• HD Video Standards: 1080p23.98/24/25/29.97/30/50/59.94/60; 1080i50/59.94/60
• Ultra HD Standards: 2160p23.98/24/25/29.97/30/50/59.94/60
• SDI Compliance: SMPTE 292M, 424M, 425M A/B, 2081-1/10, 2082-1/10
• Media: External USB-C drive for Blackmagic RAW
• Media Format: ExFAT (Windows/Mac) or HFS+ (Mac)
• Supported Codecs: Blackmagic RAW CBR 3:1, 5:1, 8:1, 12:1; CQ Q0, Q1, Q3, Q5
• Control Buttons: Set, Up, Down, Menu, Power
• Network Features: NTP, Web Media Manager, FTP, SMB
• Color Corrector: DaVinci YRGB
• Tally: 1 x front live tally indicator

• Power Supply: External 12V DC 36W
• Power Input: 12V locking 5.5mm barrel
• Power Usage: 18–25 W
• Operating Temperature: 0° to 40° C
• Storage Temperature: -20° to 45° C
• Relative Humidity: 0% to 90% non-condensing
