Blackmagic SmartScope Duo 4K
$1,225.00
• Dual independent 4K monitors
• Built-in waveform & scopes
• Supports SD, HD & 6G-SDI
• 16-channel embedded audio
• 3RU rackmount design
- Description
Description

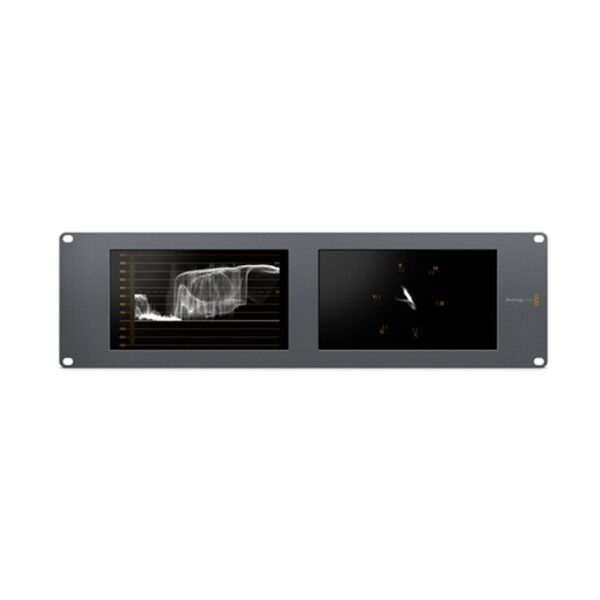

SmartScope Duo 4K
SmartScope Duo 4K looks like a SmartView Duo but adds powerful independent waveform monitoring on each screen.
Each of the two displays operates completely independently, allowing you to view any combination of picture or technical scopes including waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays.
This makes SmartScope Duo 4K ideal for broadcast, post production, color grading, live production and technical monitoring where precise signal analysis is required.
The unit supports SD, HD and 6G-SDI video standards with reclocked loop-through output for reliable signal distribution.
SmartScope Duo 4K also carries 16 channels of embedded SDI audio in both input and output, making it suitable for professional multi-channel audio workflows.
Configuration is handled via Ethernet, while software updates are performed through USB 2.0 using the included configuration utility for Mac and Windows.
Designed in a 3RU rackmount form factor, SmartScope Duo 4K is built for professional broadcast installations, control rooms, OB trucks and studio environments.
Key Features
• Two independent displays with scopes
• Waveform, vectorscope, RGB/YUV parade, histogram
• Supports SD, HD and 6G-SDI
• 16-channel embedded SDI audio
• Ethernet configuration
• 3RU rackmount design
Specification
| • Product: SmartScope Duo 4K |
| • SDI Input: Auto-switching SD, HD and 6G-SDI with reclocked loop through |
| • SDI Output: 1 x 10-bit loop through SD/HD/6G-SDI |
| • Embedded Audio: 16 channels input & output |
| • Tally: 9-pin D connector |
| • Video Sampling: 4:2:2 and 4:4:4 |
| • Color Precision: 8-bit |
| • Color Space: YUV and RGB |
| • Scopes: Waveform, Vectorscope, RGB Parade, YUV Parade, Histogram, Audio Phase & Level |
| • Control: Ethernet configuration + USB updates |
| • Form Factor: 3RU rackmount |
| • Power Supply: 12V universal with international adapters |
| • Power Consumption: < 20W |
| • Operating Temp: 0° to 40°C |
| • Storage Temp: -20° to 45°C |
