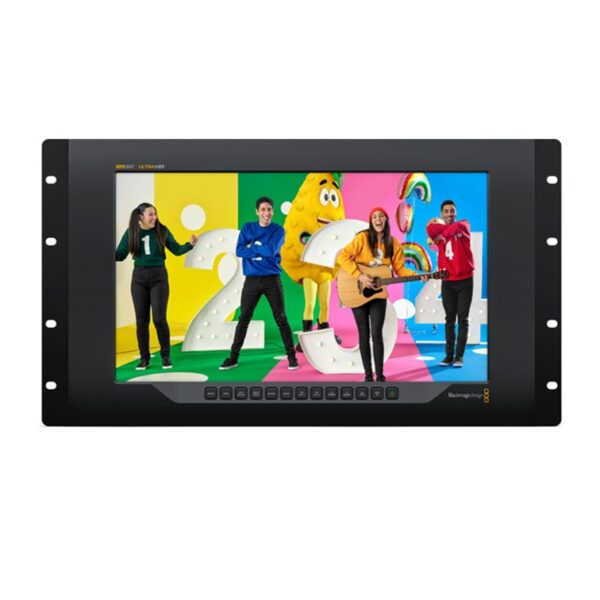

Blackmagic SmartView 4K G3
$1,745.00
• 15.6″ 4K UHD broadcast monitor
• 12G-SDI + SMPTE ST-2110 IP inputs
• SFP optical input support
• 3D LUT, focus peaking, H/V delay
• AC + 12V DC power, 9-pin tally
- Description
Description
SmartView 4K G3
The SmartView 4K G3 is the first Ultra HD broadcast monitor to combine both 12G-SDI and SMPTE ST-2110 IP video inputs in a single professional display. It is designed for modern hybrid SDI/IP broadcast facilities, OB vans, studios, and live production environments.
SmartView 4K G3 connects directly to IP-based broadcast systems while also supporting a full range of 12G-SDI equipment up to 2160p60. This makes it ideal as a confidence monitor, program display, or reference monitor in high-end production workflows.
The monitor includes both AC and 12V DC power inputs for flexible installation, plus advanced monitoring tools such as 3D LUT support, focus peaking, H/V delay, blue-only mode, and framing guides.
With built-in SFP optical input, 10G Ethernet for ST-2110, SDI loop output, and professional tally support, SmartView 4K G3 integrates seamlessly into broadcast control rooms and IP routing infrastructures.
Key Features
• 15.6″ 4K UHD broadcast monitor (3840 x 2160)
• Dual 12G-SDI inputs + SDI loop output
• Native SMPTE ST-2110 IP video over 10G Ethernet
• SFP optical input (IP or optical SDI)
• 3D LUT support
• Focus peaking, H/V delay, blue-only, framing guides
• AC and 12V DC power options
• 9-pin tally input for studio use
| • SDI Inputs: 2 |
| • SDI Outputs: 1 x reclocked loop output (auto switches with input) |
| • SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G |
| • Optical Input: SFP cage supporting 2110 IP or optical SDI |
| • Multi-rate Support: Auto detection of SD, HD, 2K, UHD and 4K |
| • Ethernet: 1 x 10Gb RJ-45 (10/100/1000/10G) for ST-2110, config and updates |
| • USB: For updates and configuration |
| • Tally: 9-pin D connector |
| • SD Formats: 525i59.94 NTSC, 625i50 PAL |
| • HD Formats: 720p50/59.94/60 1080i50/59.94/60 1080p23.98 to 60 1080PsF23.98/24/25/29.97/30 |
| • 2K DCI Formats: 2Kp23.98 to 60 DCI 2KPsF23.98 to 30 |
| • Ultra HD Formats: 2160p23.98 to 60 |
| • 4K DCI Formats: 4Kp23.98 to 60 DCI |
| • SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 424M Level A & B, 425M, 2082 |
| • SDI Color Space: Rec.601, Rec.709 |
| • Video Sampling: 4:2:2 and 4:4:4 |
| • SDI Auto Switching: SD/HD/3G/6G/12G automatic |
| • IP Video Compliance: SMPTE 2110-20 (uncompressed video) IGMP v2 |
| • 2110-21 Traffic Shaping: Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
| • 2110-30 Audio: PCM, Level C |
| • 2110-40 ANC Data: Full access to ANC stream including RP 188, closed captions, HDR metadata |
| • PTP Timing: IEEE 1588-2008 (PTP v2) ST 2059-1, ST 2059-2 |
| • NMOS IS-04: v1.3.2 |
| • NMOS IS-05: v1.1.2 |
| • NMOS BCP-002-01: Natural Grouping |
| • NMOS BCP-004-01: Receiver Capabilities |
| • Peer Discovery: mDNS/DNS-SD |
| • Codec: Blackmagic IP10 for 12G-SDI to ST-2110 |
| • Software Update: Via included firmware updater |
| • Settings Control: USB or Ethernet |
| • Operating Systems: macOS 13 Ventura or later macOS 14 Sonoma or later Windows 10 and 11 |
| • Display: 15.6″ TFT LCD |
| • Resolution: 3840 x 2160 |
| • Response: 25 ms |
| • Contrast: 1000:1 |
| • Color Depth: 16.7 million colors |
| • Power Supply: Internal 100–240V AC |
| • Power Inputs: 1 x IEC C14 AC 1 x 5.5mm +12V DC barrel |
| • Power Consumption: 24 W |
| • Form Factor: 6RU rack mount |
| • Operating Temp: 0°C – 40°C |
| • Storage Temp: -20°C – 60°C |
| • Humidity: 0–90% non-condensing |
