Blackmagic Teranex Mini SDI Distribution 12G

Description

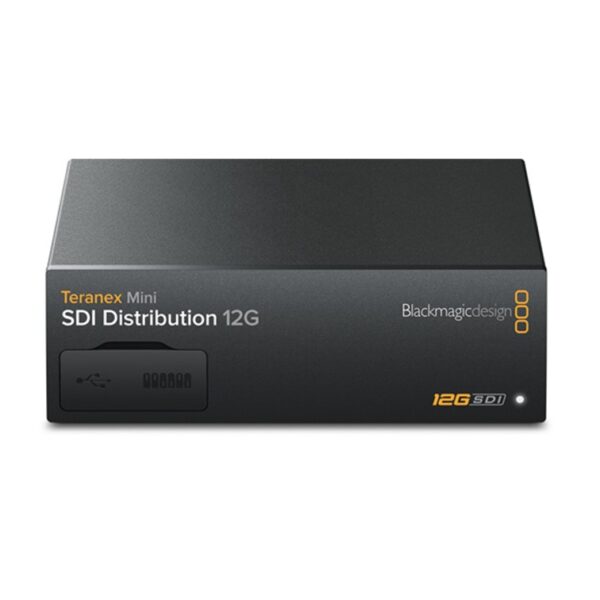

Teranex Mini SDI Distribution 12G

The Teranex Mini SDI Distribution 12G lets you distribute a single SDI video input to up to eight independent SDI outputs with full broadcast reliability.

Featuring multi-rate 12G-SDI and professional reclocking on all outputs, the unit automatically switches between SD, HD, 2K, and Ultra HD formats up to 2160p60 without user intervention.

This makes it ideal for feeding multiple monitors, switchers, recorders, encoders, or broadcast devices from a single high-quality source while preserving signal integrity.

---

Key Features

• 1 input to 8 SDI outputs
• Supports up to 12G-SDI / 2160p60
• Automatic SD/HD/2K/4K switching
• Professional SDI reclocking
• 16-channel embedded audio passthrough
• USB or Ethernet configuration
• Optional Smart Panel control
• PoE+ capable

Specification

• SDI Video Inputs: 1 x 12G-SDI (SD/HD/2K/4K auto switching)

• SDI Video Outputs: 8 x 12G-SDI (automatically matches input format)

• Embedded Audio: 16 channels

• Multi-Rate Support: Automatic SD/HD/2K/4K switching

• Updates & Configuration: USB or Ethernet

• Reclocking: Yes

• SD Video Standards:
525i59.94 NTSC, 625i50 PAL

• HD Video Standards:
720p50 / 59.94 / 60
1080i50 / 59.94 / 60
1080p23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
1080PsF23.98 / 24 / 25 / 29.97 / 30

• 2K Video Standards:
2Kp23.98 / 24 / 25 DCI
2KPsF23.98 / 24 / 25 DCI

• Ultra HD Video Standards:
2160p23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60

• 4K Video Standards:
4Kp23.98 / 24 / 25 DCI

• SDI Compliance:
SMPTE 259M, 292M, 296M, 372M, 424M,
425M Level A & B, 2081-1, 2081-10, 2082-1, 2082-10

• SDI Video Sampling: 4:2:2 and 4:4:4

• SDI Audio Sampling: 48 kHz, 24-bit

• SDI Color Space: YUV & RGB

• Settings Control:
Mini switches, USB, Ethernet via free utility
Optional Smart Panel with LCD and rotary knob

• Power Supply: Built-in international AC (IEC C14), 100–240V

• PoE Support: 48V PoE+ compatible

• Power Consumption: 16 W

• Operating Temperature: 0°–40°C (32°–104°F)
• Storage Temperature: −20°–60°C (−4°–140°F)
• Humidity: 0–90% non-condensing
