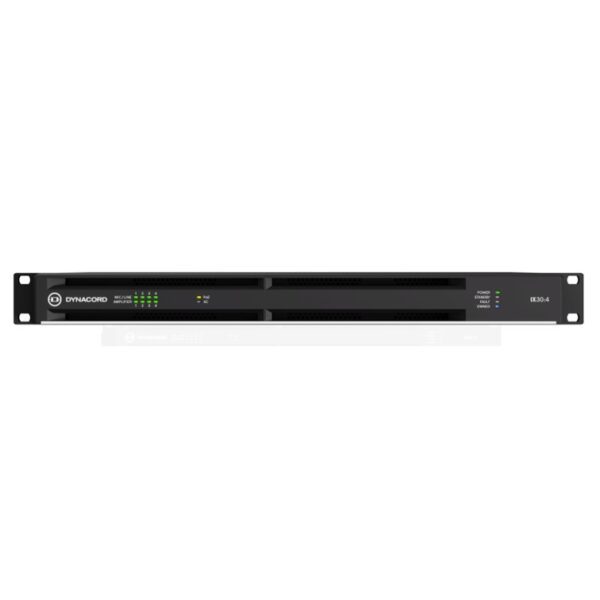

Dynacord IX30:4 4-Channel Power Amplifier with DSP (3kW)
$5,460.00
- 4-channel networked DSP amplifier delivering 3 kW total output power
- Supports both low-impedance and 70/100 V distributed audio systems
- Integrated 96 kHz DSP with 12×12 matrix mixer and FIR processing
- Dante networking with 8×8 audio channels and PoE ghostPOWER backup
- ecoRAIL technology for energy-efficient operation
- Description
Description
The Dynacord IX30:4 is a powerful 4-channel networked DSP power amplifier delivering up to 3 kW of total output power, designed for professional audio installations that demand flexibility, reliability and advanced system control. Supporting both high-impedance (70/100 V) and low-impedance loads, the amplifier is ideal for sports venues, houses of worship, hospitality environments, performance spaces and large commercial installations.
Featuring Dynacord’s intelligent powerTANK technology, the IX30:4 dynamically distributes available power across channels to maximize performance while maintaining efficiency. The amplifier includes eight Dante inputs and outputs along with mic/line inputs that can function as Dante break-in points, enabling seamless integration into modern networked audio systems.
The integrated 96 kHz DSP engine offers a comprehensive 12 × 12 matrix mixer with EQ, dynamics processing, Dynacord FX and FIR filtering. An onboard MXE-style TaskEngine provides advanced automation, scheduling, system logic and third-party integration, allowing the IX30:4 to operate as a central control hub within complex sound systems.
Dynacord’s ecoRAIL technology significantly reduces power consumption and operating costs without compromising audio performance. In addition, ghostPOWER via PoE keeps the DSP, Dante network and mic/line inputs active even during mains power interruptions, ensuring continuous monitoring and system readiness.
Fully integrated with Dynacord’s SONICUE Sound System Software, the IX30:4 can function as a SONICUE control server and supports remote management via wall panels, touch controllers and mobile devices. Combining advanced DSP processing, robust power output and comprehensive networking capabilities, the IX30:4 is an ideal solution for distributed audio systems requiring both performance and intelligent control.
Specification
• Amplifier:
Channels: 4
Total Rated Output Power: 3,000 W
Power per Channel (All Channels Driven): up to 750 W
Maximum per Channel: up to 1,000 W
Bridge Mode: up to 1,500 W
Hi-Z Operation: 70 V / 100 V direct drive
Max Output Voltage: 145 Vpk per channel
Max Output Current: 33 Apk per channel
• Performance:
Frequency Response: 20 Hz – 20 kHz (±1 dB)
THD+N: < 0.1%
Crosstalk: < -80 dB
Sampling Rate: 96 kHz internal (Dante 48/96 kHz switchable)
Latency (analog in to speaker out): 0.77 ms
• DSP & Audio Processing:
Matrix Mixer: 12 × 12
Processing: EQ, dynamics, Dynacord FX, FIR-Drive
TaskEngine: Automation, scheduling, system logic
Pilot-tone detection on all inputs
• Inputs:
Mic/Line Inputs: 4 usable as Dante break-in points
Gain Range: 0 – 60 dB
Maximum Input Level: +18 dBu
Phantom Power: +48 V, switchable per input
Input Impedance: > 10 kΩ
• Network & Connectivity:
Dante Audio: 8 × 8 channels
Network Ports: 2 × RJ45 (PRIMARY/SECONDARY)
Redundancy Modes: Glitch-free, RSTP
Backup Power (ghostPOWER): PoE on primary port
Speaker Outputs: Euroblock (4-channel)
Mic/Line Inputs Connector: Euroblock
Control Port: 8-pin Euroblock
Mains Input: IEC C14
• Power & Efficiency:
Power Requirements: 100–240 V AC, 50/60 Hz
Rated Consumption (1/8 power): 550 W
Eco Mode: 25 W
Standby Mode: < 15 W
Technology: ecoRAIL energy optimization
• Protection & Cooling:
Protections: Thermal, DC, HF, short circuit, back-EMF, peak current, mains over/under voltage
Cooling: Front-to-rear temperature-controlled fan
• Physical:
Dimensions: 483 × 44.1 × 447 mm (19″ rack mount, 1U)
Weight: 7.45 kg
Shipping Weight: 9.3 kg
