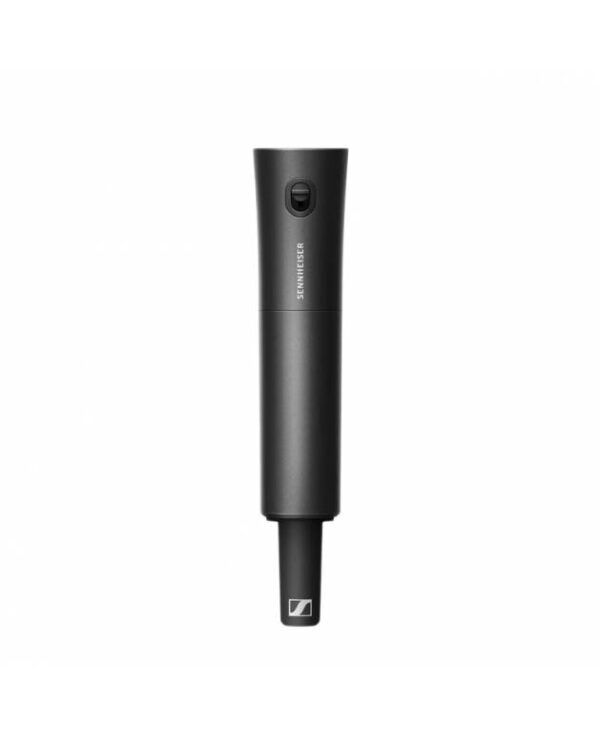

Sennheiser EW-D SKM-S Digital Wireless Handheld Transmitter with Mute Switch (No Mic Capsule) - Image 1

Sennheiser EW-D SKM-S Digital Wireless Handheld Transmitter with Mute Switch (No Mic Capsule)

Shure MV51 MOTIV Condenser Microphone (Silver) & Shure SE846 Sound Isolating™ Earphones (Clear) Bundle
Sennheiser EW-DX 935-S SET Dual-Channel Digital Wireless System with 2 Handheld Mics & MMD 935 Capsules

$479.00

Category: Brand:

Description

Digital UHF handheld transmitter with mute switch for use with Evolution Wireless Digital. (Microphone Module available separately.)

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This handheld transmitter is compatible with a wide range of Sennheiser and Neumann microphone capsules.



  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
  • Auto scan creates reliable connections with minimal time and effort
  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
  • 2,240 selectable frequencies allow for fine tuning
  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)



  • Frequency range
    552 – 607.8 MHz

    662 – 693.8 MHz

    1785.2 – 1799.8 MHz

    630 – 662 MHz

    520 – 576 MHz

    470.2 – 526 MHz

    925.2 – 937.3 MHz

    823.2 – 831.8 MHz & 863.2 – 864.8 MHz

    606.2 – 662 MHz

  • THD, total harmonic distortion
    ≤ -60 dB for 1 kHz @ -3 dBfs input level
  • Weight
    approx. 304 g (incl. MMD 835 microphone module)

    approx. 195 g (without microphone module)

  • Operating temperature
    -10 °C – +55 °C (14 °F – 131 °F)
  • Power supply
    2 AA batteries 1.5 V (alkaline manganese)

    or BA 70 rechargeable battery pack

  • Current consumption
    < 300 mA
  • Input voltage range
    2.0 – 4.35 V
  • Transmission power
    Audio link: 10 mW

    ERP (Range Y1-3): 12 mW ERP

    BLE: max. 10 mW EIRP

  • Operating relative humidity
    5 – 95 % (non-condensing)
  • Audio frequency response
    20 Hz – 20 kHz (-3 dB) @ 3 dBfs
  • Dimensions
    50 x 268 mm (incl. MMD 835 microphone module)

    40 x 200 mm (without microphone module)
