Yamaha SWP1-8MMF Network Switch With 8 etherCON ports
$2,888.00
- DIP Switch Dante Optimization
- Network Visibility
- Reliability and Connectivity
- etherCON Connectors for Live Sound Reliability
- Optical Fiber and Network Redundancy Support (option required for redundancy)
- EXT DC INPUT for Power Supply Redundancy
- Port Status and Bandwidth Utilization
- Port Status and Bandwidth Utilization
- Snapshot Function Makes Troubleshooting Easy
- Description
Description

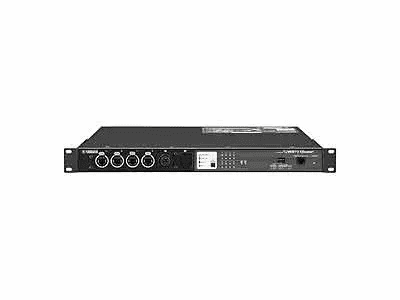

Yamaha SWP1-8MMF L2 switch is ideal for Dante network systems. It features eight etherCON ports, one opticalCON port, and an option slot for one more port as needed.
- etherCON Connectors: 4 front / 4 rear
- opticalCON Connectors: 1 front
- Optional optical module slot: 1 front
- Power consumption: 11W
- Dimensions (WxHxD): 480 x 44 x 362mm (18.9″ x 1.7″ x 14.2″)
- Net Weight: 4.2 kg (9.3 lbs)
Yamaha SWP1-8MMF includes multi-mode fiber capable opticalCON connectors. Both models allow transmission over distances of up to 300 meters. The optional MMF-SWP1 optical fiber module can be added to allow two optical fiber cables to be run for redundant connection. Rapid spanning tree protocol (RSTP) is also supported for redundant connections.
