ATEM Mini Extreme ISO G2
$2,545.00
• 8 HDMI inputs with standards conversion
• Built-in streaming (RTMP + SRT)
• ISO recording of all 8 inputs
• 10G Ethernet for fast network storage
• Fairlight audio mixer with EQ & dynamics
• USB webcam output for Zoom/Teams
- Description
Description

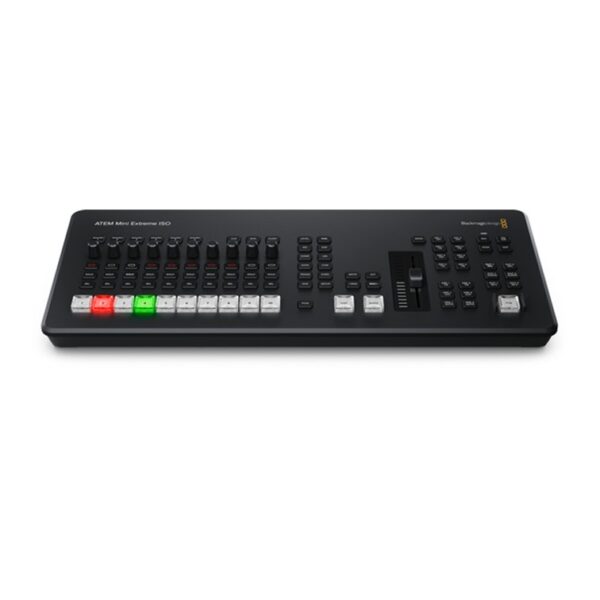

ATEM Mini Extreme ISO G2
The ATEM Mini Extreme ISO G2 is a professional, all-in-one live production switcher that lets you build a high-end broadcast studio in a compact form factor. Designed for streaming, live events, education, houses of worship, and professional content creation, it combines advanced switching, multi-view monitoring, ISO recording, and high-quality audio processing in a single powerful unit.
With 8 HDMI inputs, 3 HDMI outputs, built-in streaming, USB webcam output, Thunderbolt connectivity, and 10G Ethernet for fast network storage, this switcher delivers broadcast-grade performance with exceptional flexibility. The built-in control panel allows instant hands-on operation, while full compatibility with Blackmagic’s advanced hardware panels makes it scalable for larger productions.
The ISO recording capability captures all 8 HDMI inputs separately as H.264 files while simultaneously saving a DaVinci Resolve project file — making post-production fast and seamless. The integrated Fairlight audio mixer provides professional audio control with EQ, compression, gating, and limiting.
Featuring powerful chroma keying, DVE effects, SuperSource compositing, media players, and streaming inputs, the ATEM Mini Extreme ISO G2 is ideal for professional multi-camera productions, corporate broadcasts, and high-quality live streaming workflows.
Key Features
• 8 standards-converted HDMI inputs
• 3 independent HDMI outputs
• Built-in RTMP & SRT streaming engine
• 10G Ethernet for fast network recording
• CFexpress and USB-C recording
• Thunderbolt for advanced video I/O
• USB webcam output (720p / 1080p)
• Built-in Fairlight audio mixer with EQ, compressor, gate, and limiter
• Advanced chroma key, DVE, and SuperSource
• ISO recording of all 8 inputs + DaVinci Resolve project file
| • Video Inputs: 8 x HDMI Type-A (10-bit HD), 1 x Thunderbolt |
| • Video Outputs: 3 x HDMI Program, 2 x USB-C Webcam, 1 x Thunderbolt |
| • SDI Rates: 1.5G, 3G |
| • Multi View: 1 x configurable up to 16 views |
| • Ethernet: 1 x 1G + 1 x 10G |
| • Computer Interface: 2 x USB-C 3.1 Gen 1, 1 x Thunderbolt |
| • Video Standards (Input): 720p50/59.94/60 1080p23.98 to 60 1080i50/59.94/60 |
| • Video Standards (Output): 1080p23.98 to 60 |
| • Color Sampling: 4:2:2 YUV |
| • Color Precision: 10-bit |
| • Color Space: Rec.709 |
| • Audio Mixer: 26-input x 2-channel Fairlight mixer |
| • Analog Audio Input: 2 x XLR Combo with +48V phantom |
| • Headphone Output: 1 x 6.35mm jack |
| • Recording: 8 x HDMI ISO (H.264 up to 70Mbps) 1 x Program output recording 26 x 2-channel WAV audio tracks |
| • Media Format: ExFAT, APFS, HFS+ |
| • Power Supply: External 12V DC |
| • Power Usage: 120W max |
| • Operating Temperature: 5°C – 40°C |
| • Storage Temperature: -10°C – 60°C |
| • Humidity: 0–90% non-condensing |
