Audio Technica AT8033 Cardioid Condenser Speech Microphone - Image 1

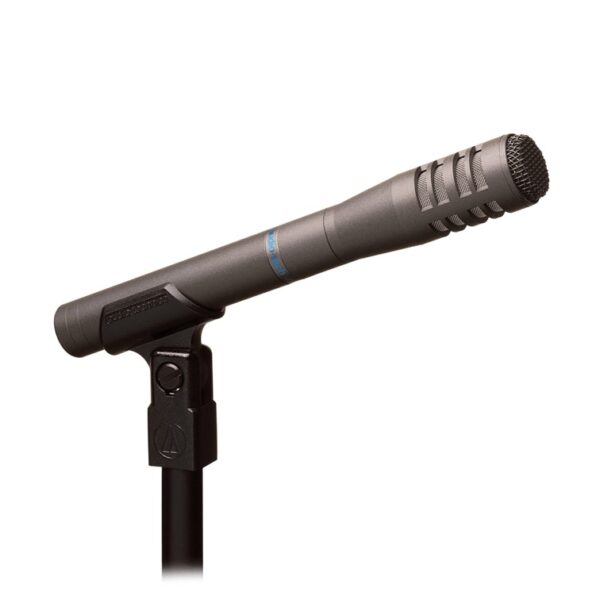

Audio Technica AT8033 Cardioid Condenser Speech Microphone

Audio Technica U853R Cardioid Hanging Microphone
Audio Technica AT8022 Stereo X-Y Microphone

  • All-purpose cardioid condenser microphone for interviews, vocals, and general recording.
  • Operates on battery or phantom power for flexible field or studio use.
  • High SPL capability and wide frequency response for detailed sound capture.
  • Cardioid pattern reduces background noise and improves source isolation.
  • Suitable for studio, stage, broadcast, and portable audio applications.
Categories: , , Brand:

Description

Audio-Technica AT8033 Cardioid Condenser Speech Microphone is an all-purpose condenser microphone designed for handheld interviews, speech, vocals, and general audio acquisition. This cardioid condenser microphone delivers clear, natural sound reproduction, making it suitable for studio recording, stage performance, broadcast, and live sound applications.

The AT8033 speech microphone features a cardioid pickup pattern that reduces sound from the sides and rear, helping isolate the desired sound source. With high SPL capability and wide frequency response, it handles loud sources while maintaining excellent clarity and linearity both on-axis and off-axis.

Designed for flexibility, this condenser microphone operates on either internal battery power or phantom power, making it suitable for portable recorders, cameras, mixers, and professional audio systems. Its robust construction and versatile performance make the Audio-Technica AT8033 ideal for interviews, acoustic instruments, percussion, overhead use, vocals, and general-purpose recording.

RoHS compliant construction ensures the microphone is free from hazardous substances specified in EU directives, making it suitable for professional and institutional use.

Key Features

• All-purpose cardioid condenser microphone for interviews, vocals, and general audio acquisition

• Cardioid pickup pattern reduces side and rear noise for better source isolation

• High SPL capability suitable for loud sound sources

• Wide frequency response for detailed sound reproduction

• Operates on battery or phantom power for flexible use

• Excellent performance for studio and stage applications

• Outstanding linearity on- and off-axis

• RoHS compliant construction

Specification

• Element: Fixed-charge back plate, permanently polarized condenser

• Polar Pattern: Cardioid

• Frequency Response: 30 – 20,000 Hz

• Low-Frequency Roll-Off: 80 Hz, 18 dB/octave

• Sensitivity: Phantom: -44 dB (6.3 mV) re 1V at 1 Pa; Battery: -45 dB (5.6 mV) re 1V at 1 Pa

• Maximum Input Sound Level: Phantom: 137 dB SPL (1 kHz at 1% T.H.D.); Battery: 123 dB SPL (1 kHz at 1% T.H.D.)

• Dynamic Range: Phantom: 113 dB (1 kHz at Max SPL); Battery: 99 dB (1 kHz at Max SPL)

• Signal-to-Noise Ratio: 70 dB (1 kHz at 1 Pa)

• Power Requirements: Phantom power: 11 – 52V DC, 2 mA typical; Battery: 1.5V AA/UM3

• Battery Life: 0.4 mA / 1200 hours typical (alkaline)

• Switches: Flat, roll-off

• Output Connector: Integral 3-pin XLRM-type

• Dimensions: 194.2 mm long; 26.0 mm head diameter

• Weight: 159 g (5.6 oz)
