Audio Technica ATW-1447/PRO49Q System 20 PRO Quad Wireless Gooseneck Mic System
$3,639.00
• 2.4 GHz digital wireless microphone system with plug-and-play setup
• High-resolution 24-bit / 48 kHz audio performance
• License-free operation with no TV interference
• Scalable system supporting up to 20 channels
• Standard mode for low latency or HD mode for maximum capacity
• Receiver supports up to four transmitters per channel
• AES128 encryption for secure wireless transmission
• Centralized management via Wireless Manager software
- Description
Description

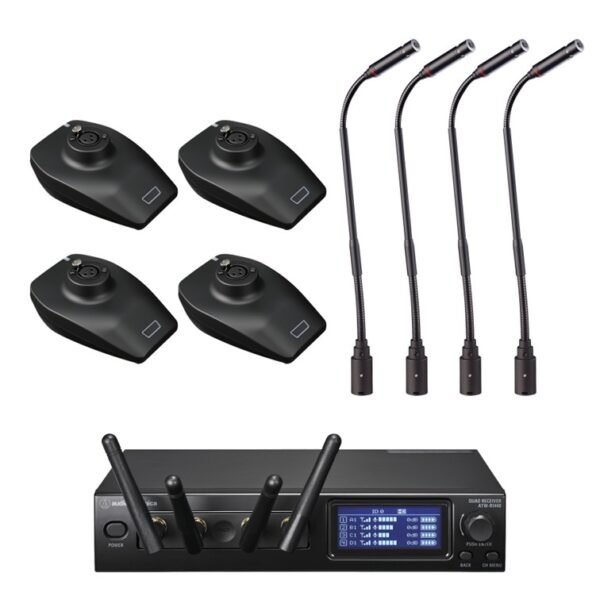

Audio-Technica System 20 PRO 2.4 GHz Digital Wireless Microphone System
The Audio-Technica System 20 PRO is a next-generation 2.4 GHz digital wireless microphone system designed for effortless setup, reliable performance, and scalable operation. Offering plug-and-play functionality with self-managing frequency operation, the system eliminates the complexities typically associated with conventional wireless microphones such as frequency coordination, intermodulation calculations, and antenna cabling.
Operating with high-resolution 24-bit / 48 kHz digital audio, System 20 PRO delivers clear, dependable sound quality across a wide range of applications — from live performance and presentations to installations and houses of worship. Because it operates in the globally license-free 2.4 GHz band, the system is free from TV interference and can be used virtually anywhere.
The ATW-R1440 receiver supports up to four transmitters per channel and can be docked in a half-rack chassis or mounted remotely via Ethernet cable for flexible installation. Up to five chassis can be linked together using RJ12 cables, allowing simultaneous operation of up to 20 channels. Users can choose between Standard mode for lower latency or HD mode for maximum channel capacity.
Management is handled through Audio-Technica’s Wireless Manager software, enabling centralized monitoring and configuration of multiple systems from a single interface. AES128 encryption ensures secure transmission, while OLED displays on transmitters and receivers provide clear status information including battery level, signal strength, and system settings.
Built for demanding professional environments, the System 20 PRO offers reliable performance, flexible deployment options, and seamless scalability for modern wireless audio applications.
Key Features
• 2.4 GHz digital wireless system with plug-and-play operation
• 24-bit / 48 kHz audio for high-quality sound reproduction
• License-free operation free from TV interference
• Scalable system supporting up to 20 channels
• Standard mode for low latency or HD mode for maximum channels
• Receiver supports up to four transmitters per channel
• Remote mounting via Ethernet cable for flexible installation
• AES128 encryption for secure wireless transmission
• Centralized control via Wireless Manager software
• OLED displays provide clear system status and alerts
Specification
| Wireless System: | |
| Operating Frequency | 2.4 GHz band |
| Audio Resolution | 24-bit / 48 kHz digital |
| Encryption | AES128 |
| Operation Modes | Standard Mode (10 channels), HD Mode (20 channels) |
| Maximum Channels | Up to 20 channels (linked chassis) |
| Receiver: | |
| Model | ATW-R1440 |
| Receiver Capacity | Up to 4 transmitters per channel |
| Mounting | Half-rack dock or remote mounting via Ethernet |
| Linking | Up to 5 chassis via RJ12 cable |
| Control & Monitoring: | |
| Management Software | Wireless Manager compatible |
| Display | OLED screens on transmitters and receivers |
| Status Information | RF signal, system ID, battery level, link status |
| Additional Features: | |
| Auto-Lock Function | Prevents unintended operations |
| Connector (Bodypack) | cW-style locking 4-pin connector |
| Charging Compatibility | ATW-CHG3 / ATW-CHG3a / ATW-CHG3N / ATW-CHG3Na docks |
| Protocol Support | Syslog compatible |
